Fiber-to-Fiber Coupler 60FF-T

Compact, rugged and highly efficient opto-mechanical unit for interconnecting two fiber cables

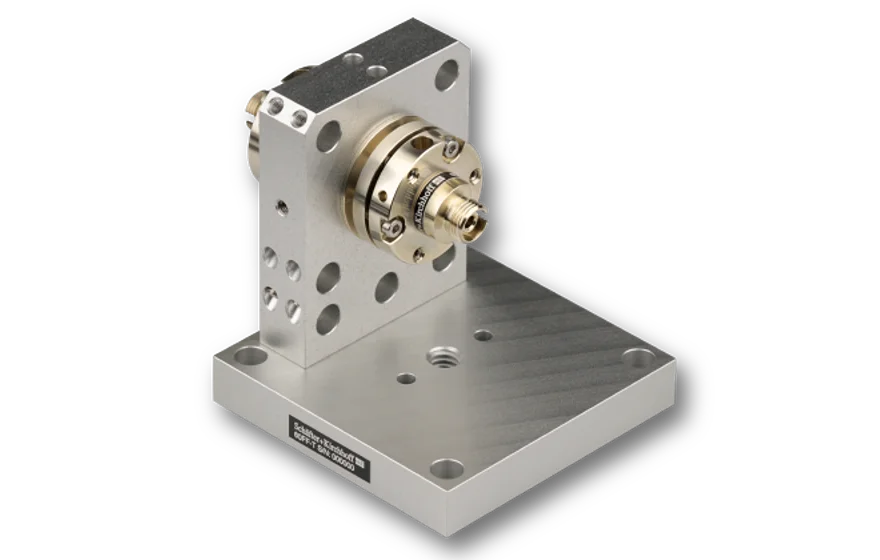

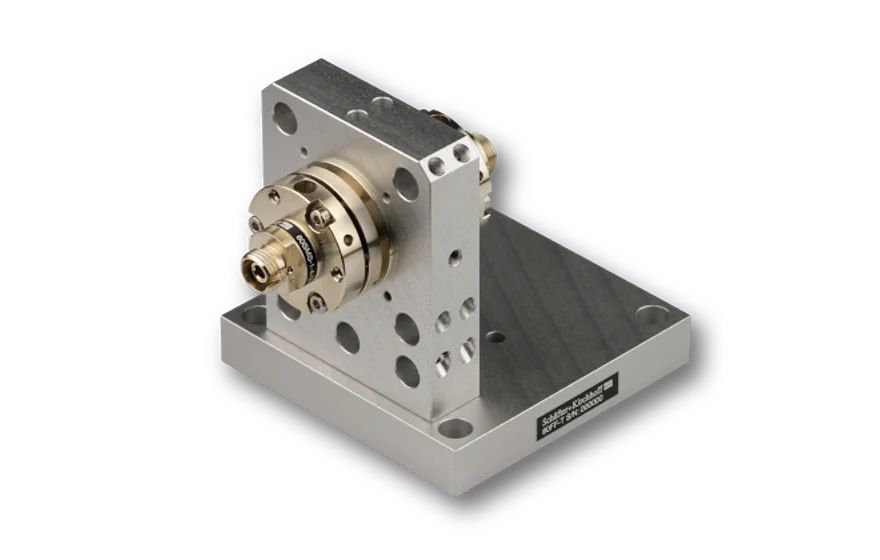

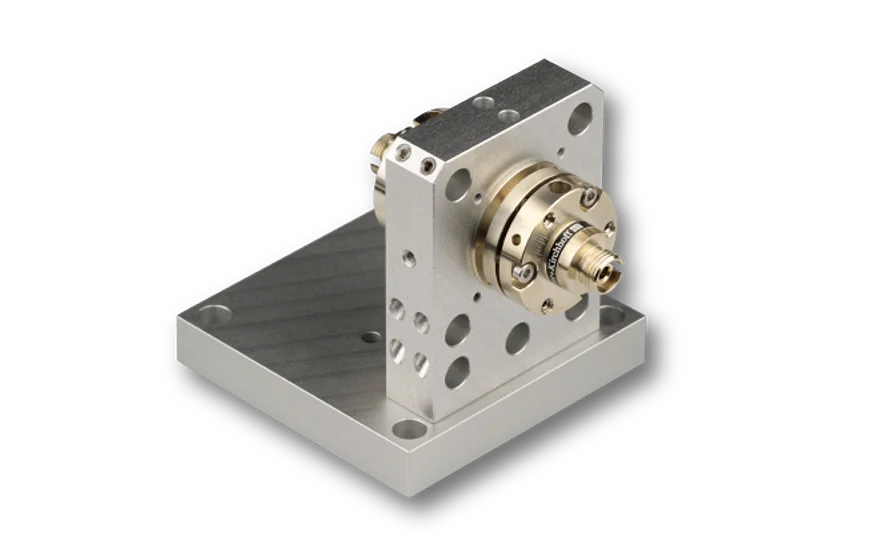

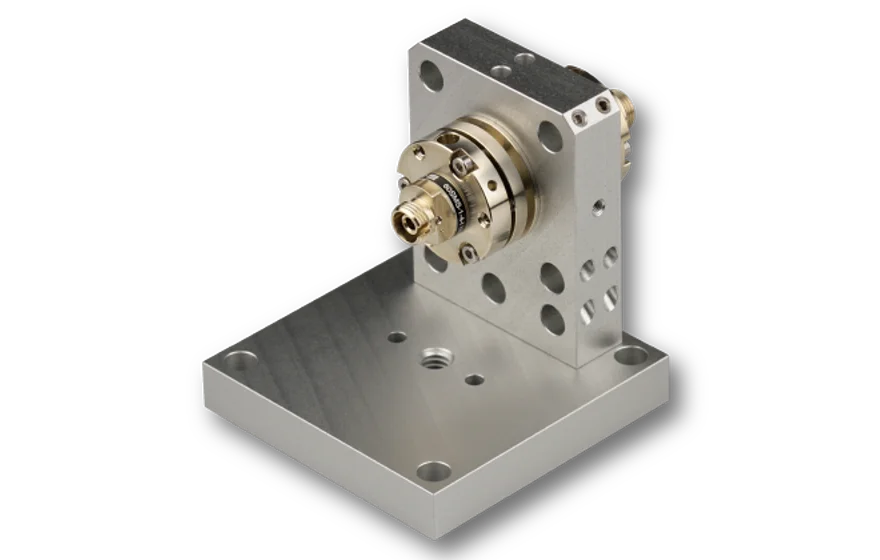

Fiber-to-fiber coupler 60FF-T
Fiber-to-fiber coupler 60FF-T
Fiber-to-fiber coupler 60FF-T
Fiber-to-fiber coupler 60FF-T
Fiber-to-fiber coupler 60FF-T
Fiber-to-fiber coupler 60FF-T
Fiber-to-fiber coupler 60FF-T
Fiber-to-fiber coupler 60FF-T

Features

Fiber-to-Fiber Coupler
  • For single-moder or PM fiber cables
  • High coupling efficiency
  • Polarization-maintaining
  • Adjustable
  • Compact, rugged, transportable and sealed opto-mechanical units
  • Very high long-term stability, efficiency and reproducability
  • Can be used as interface between different types of fibers or connectors

Description

The 60FF-T Fiber-to-Fiber coupler is used for interconnecting two fiber cables. It can be aligned and focused so that fiber cables with non-core centered connectors can be coupled with a low coupling loss and, additionally, the polarization axes can be aligned.

Fiber Couplers
A fundamental component of the Fiber-to-Fiber Coupler is the Laser Beam Coupler, which is the input into the opto-mechanical unit collimating the input radiation and, finally, couples the radiation back into the second fiber cable. The stability of the total Fiber-to-Fiber Coupler is determined by the stability of the laser beam coupler.

Coupling focal length
The best focal length for the 60SMS Laser Beam Couplers used in these systems is f' 11 - 12 mm. If the effective numerical apertures of the two fiber used with this system are different, you have to use two Laser Beam Couplers with different focal lengths.

How to order
For selecting the 60SMS Laser Beam Couplers please refer to the 60SMS Laser Beam Couplers site and select in terms of focal length, wavelength range and connector type.

The complete Order Code is composed as follows:
60FF-T-60SMS-...(insert complete Order Code of 1st 60SMS) -60SMS-...(insert complete Order Code 2nd 60SMS)

Example
60FF-T-60SMS-M12-10-60SMS-M12-10

Technical data

Fiber-to-Fiber Coupler 60FF-T

Order code
60FF-T
Wavelengths
370 - 1700 nm, monochromatic*
Focal length
11 mm (standard)
Fiber type
single-mode or polarization-maintaining
Connector type
FC APC (standard)
Transmission
≥ 75 % @ 780 nm
* Broadband systems on request

Downloads

Dimensional drawing
970920020476.pdf (Dimensional drawing)
Manual
60FF-T_.pdf (Manual)
Manual
60FF-T_.pdf (Manual, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

60EX-4
Eccentric key with a stroke of ± 0.5 mm.
9D-12
Screwdriver WS 1.2
50HD-15
Hex key WS 1.5
13BL1-13
Iris diaphragm for fiber collimators with diameter Ø 25/28 mm
