13BL1-13

Iris diaphragm for fiber collimators with diameter Ø 25/28 mm

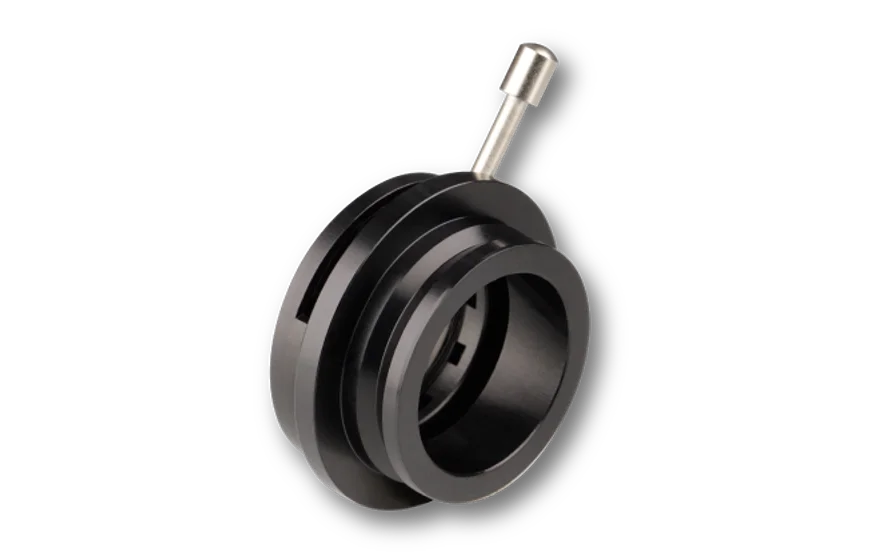

Iris diaphragm 13BL1-13

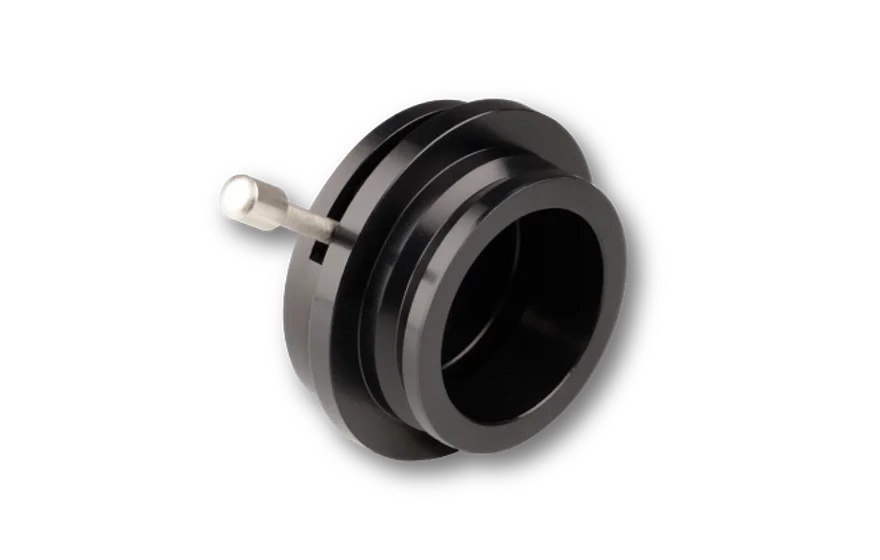

Iris diaphragm 13BL1-13

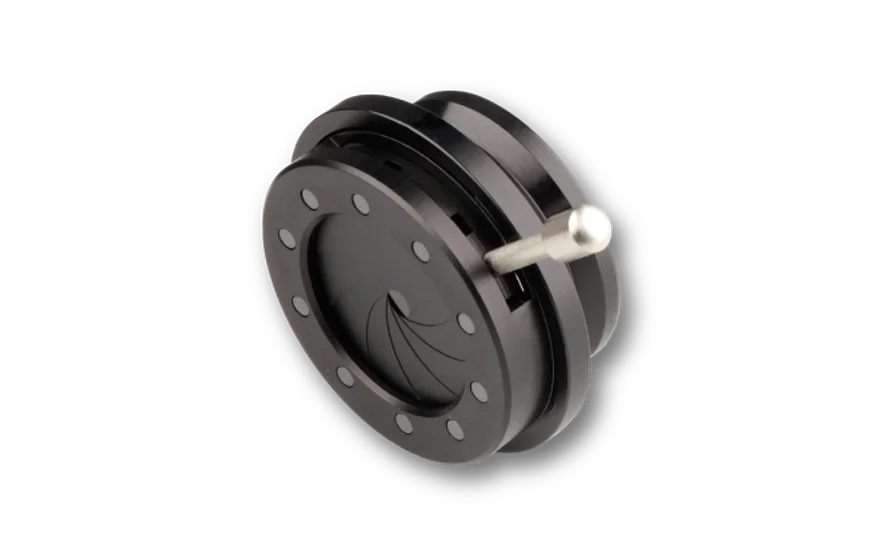

Iris diaphragm 13BL1-13

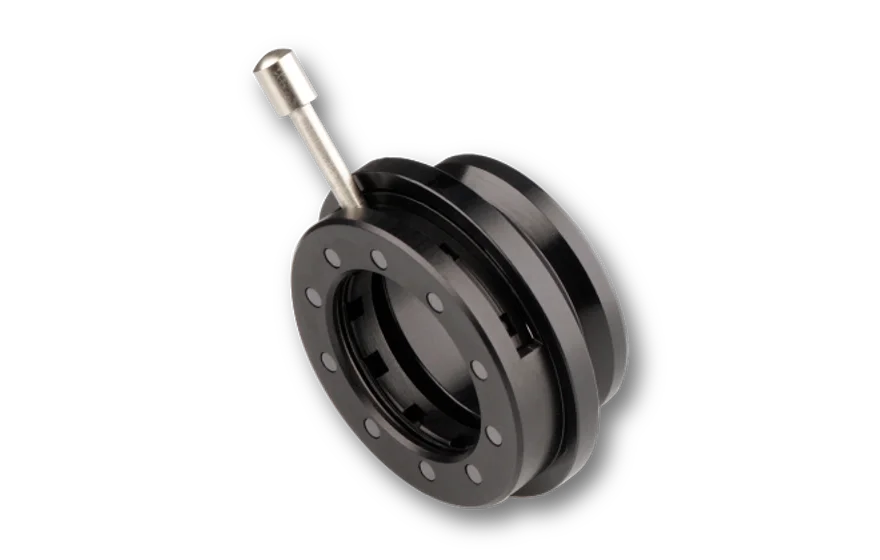

Iris diaphragm 13BL1-13

Features

Iris diaphragm with an variable aperture for fiber collimators series 60FC-L/T/Q
with an outer diameter Ø 25 mm.
  • System mount Ø 19.5 mm
  • Min. aperture Ø 1 mm
  • Max. aperture Ø 13 mm
Please note: In case of use with a single-mode / PM-fiber, the Gaussian beam from the fiber collimator is truncated by the iris diaphragm or by the pinhole

Description

13BL1-13
