60FC-E-4-F57x171-852

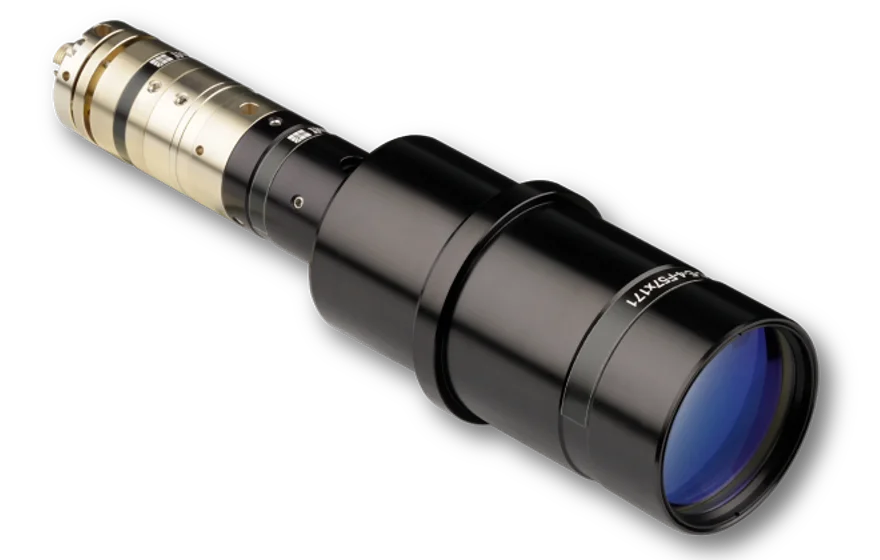

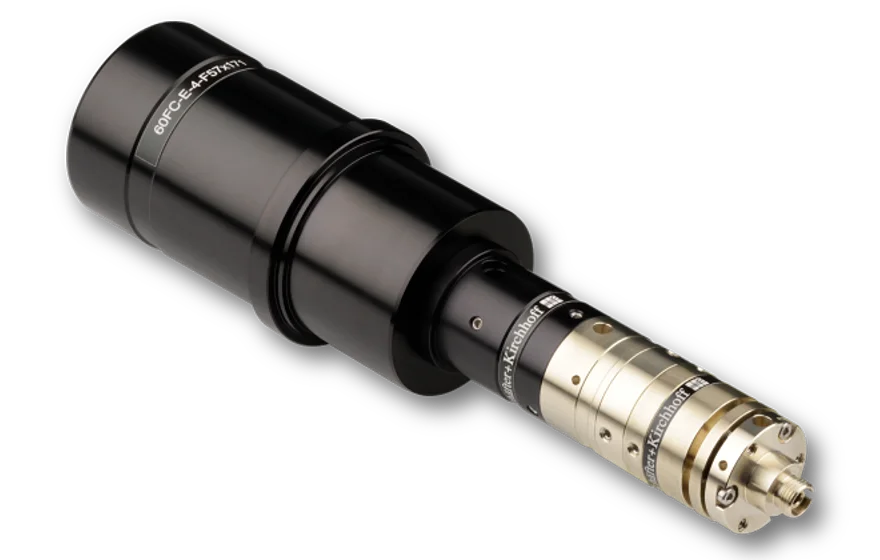

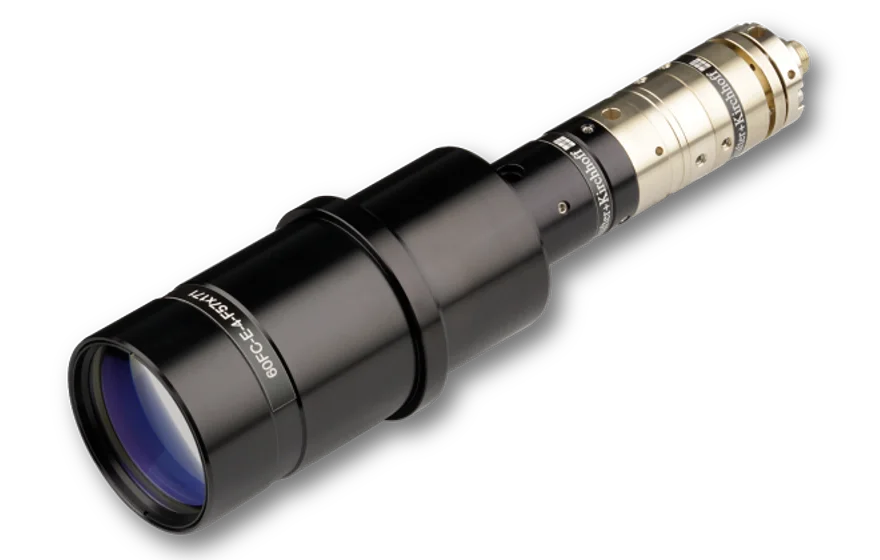

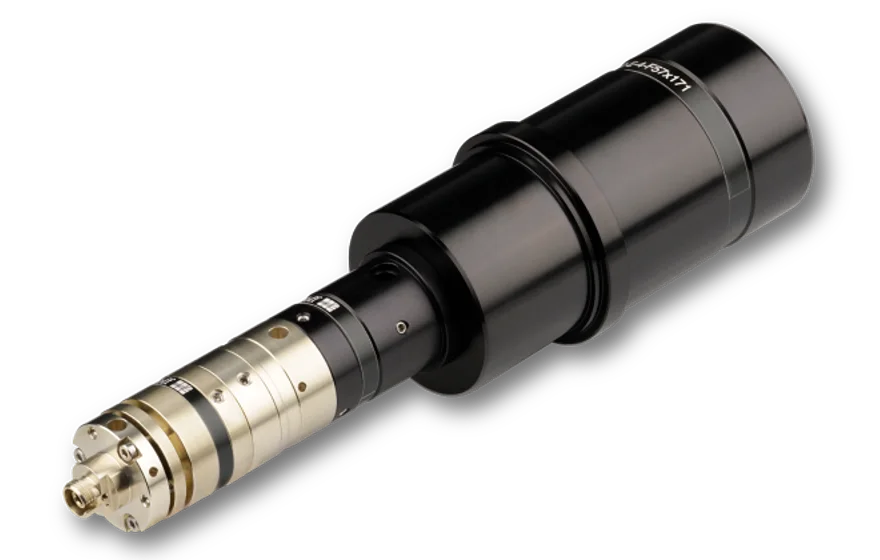

Fiber collimator for an ellipical beam cross section

60FC-E-4-F57x171
60FC-E-4-F57x171
60FC-E-4-F57x171
60FC-E-4-F57x171
60FC-E-4-F57x171
60FC-E-4-F57x171
60FC-E-4-F57x171
60FC-E-4-F57x171

Features

Fiber collimator for an ellipical beam cross section
  • Effective focal lengths f' 57 x 171 mm
  • Aspect ratio 1:3
  • Designed and adjusted for the wavelength 852 nm
  • Clear aperture Ø 42 mm
  • Receptacle for fiber connectors type FC APC

Description

The fiber collimator generates a collimated beam with an elliptical cross section. It is suitable for single-mode and polarization-maintaining fiber cables and leads to a collimated beam with a Gaussian intensity profile and an elliptical beam cross section with an axis ratio of 1:3.

The effective focal lengths are f' 57 x 171 mm.
The state of polarization is linear and can be orientated in parallel with either the long or short elliptical axis.

Optical design
The radiation of the fiber is collimated to a beam with a diameter in the range Ø 1 - 4 mm. An adjacent anamorphic beam shaping optics transforms the circular beam into a beam with an elliptical cross section. Finally the beam is expanded to the desired diameter.

Adjustment of focus
All fiber collimators of seris 60FC-E are aligned for the specified wavelength.
In case of need you can change the distance between fiber end-face and the first collimating optics by means of an eccentric key. The lens does not rotate when adjusting the focus in both cases. The final focus setting is locked by means of two radially arranged clamping screws. Additionally attachment optics can be mounted to the front of the collimator.

Optimum lens performance
The angled polish of connectors of type APC is considered by a pre-angled mechanical coupling axis that compensates the beam deflection and you can use the lens centrically. This minimizes aberrations simply resulting from a non-ideal beam path through the lens.

Connector Type
The fiber collimator is equipped with a type FC APC receptacles. An additional grub screw fixes the spring loaded ferrule of the fiber connector in order to increase pointing stability.

Housing material
The fiber collimators are made of nickel silver and black anodized aluminum.

Mounting
The collimators series 60FC-E all posses a flange for low-strain mounting e.g. using the clamp collars series CC.

60FC-E optical scheme

Technical data

60FC-E-4-F57x171-852

Type
60FC-E
Order Code
60FC-E-4-F57x171-852
Eff. focal lengths
57 x 171 mm
Aspect ratio
1 : 3
Clear aperture
42 mm
Elements/Groups
8/5
Wavelength range
630 - 852 nm
Alignment wavelength
852 nm
Fiber connection
FC/APC
Outer diameter
Ø 45/49 mm
Total length
183 mm
Material
Nickel silver and black anodized aluminum
Weight
approx. 420 g
