Features

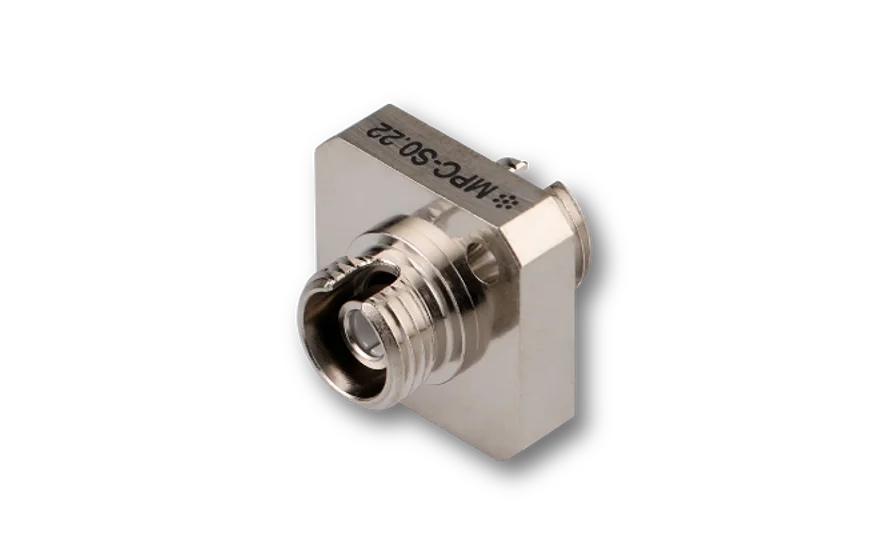

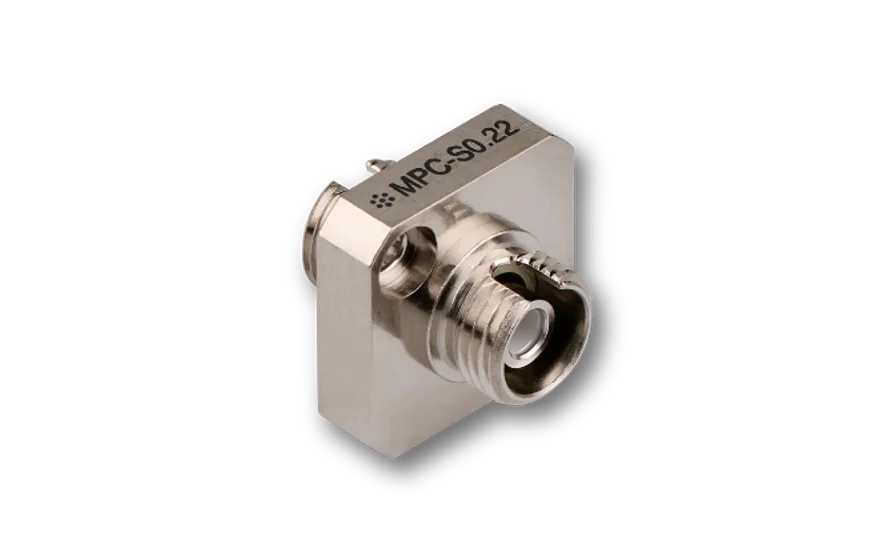

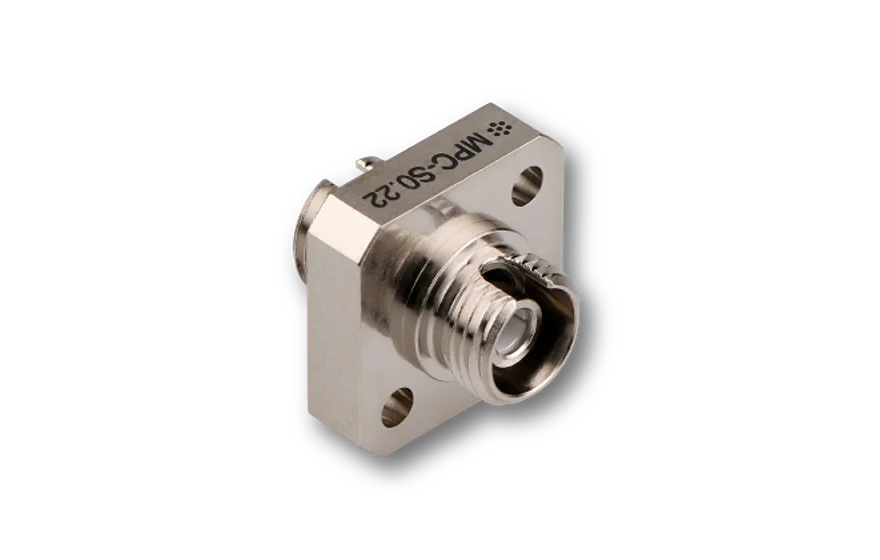

Mating sleeve to use with either two fiber connectors of type FC PC or with two connectors of type FC APC, 'wide key'
- Two fiber connectors type FC PC or
- Two fiber connectors type FC APC
- 'Wide key'
- Flange mount
- Nickel plated brass
Description
Mating sleeve to use with either two fiber connectors of type FC PC or with two connectors of type FC APC, 'wide key'
We recommend to use these mating sleeves with core aligned single-mode fiber cables only.
Please note: These are not suitable for standard single-mode fiber cables and polarization-maintaining fiber cables for wavelengths < 1000 nm, due to unpredicable power loss and a diminished PER. We recommend to use fiber-to-fiber couplers with integrated opics.
In any case: The mating sleeves are not suitable for any fiber cables with end caps including PCF fiber cables.FAQ
- Mating Sleeves
- Why are mating sleeves not suitable for PM fibers and single-mode fibers < 1000nm?
Mating sleeves are not suitable for standard single-mode fiber cables and polarization-maintaining fiber cables for wavelengths â¤1000 nm. It may lead to unpredictable power loss and a diminished PER.
Reason is, that the connectors were originally designed for telecom applications with MFDs around 10 µm. For shorter wavelengths with smaller MFDs the tolerancing is simply not precise enough to get a good enough overlap.
As for the PER, the alignment angle of the polarization axis also has a certain tolerance margin. Within the margin you will already see significant losses in PER when using a simple mating sleeve.
We recommend to use fiber-to-fiber couplers with integrated optics instead.
In any case: The mating sleeves are not suitable for any fiber cables with end caps including PCF fiber cables. - What can I use instead of a mating sleeve?We recommend to use fiber-to-fiber couplers with integrated optics instead.
