FeaturesLaser line with a large fan angle, Gaussian intensity distribution and extended depth of focus.
- Line length: 101 mm
- Line width: 180 µm
- Wavelength: 830 nm
- Working distance: 142 mm
- Depth of focus: 83.2 mm
Macro Line Generator with a large fan angle

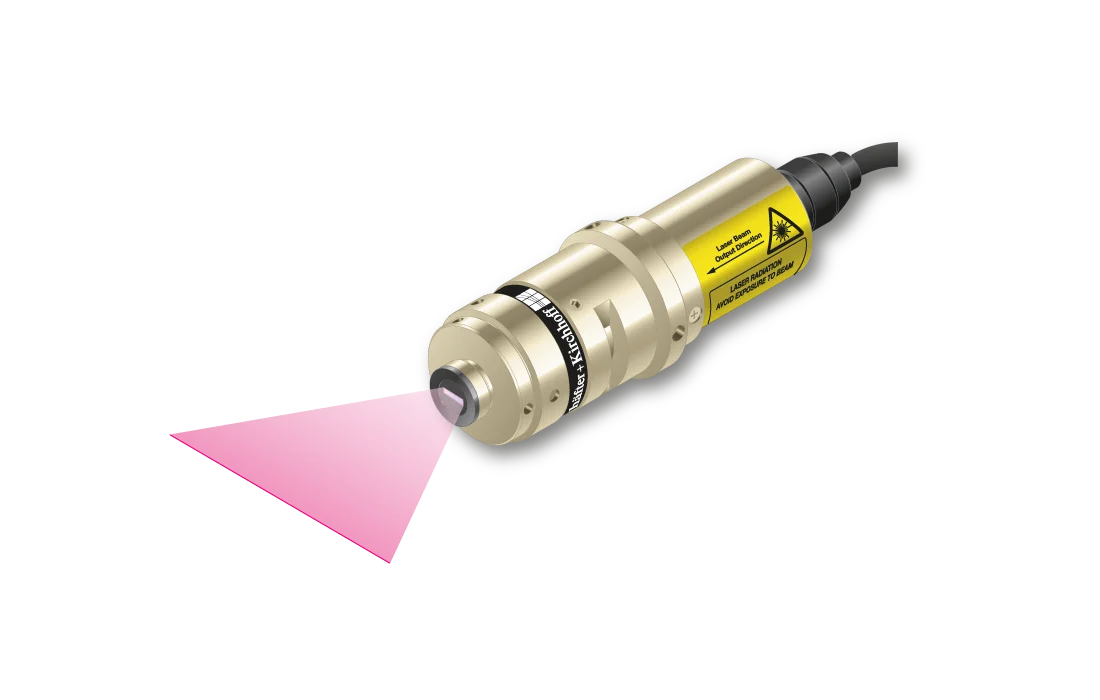

The laser diode beam source type 5LPM40-S150-1+55CM-830-23-H19-A8-C-6 has a fan angle of 40° and an extended depth of focus.
The intensity profile is Gaussian in line direction clipped by an aperture with an edge intensity of 15 %. The line width is constant along the laser line. Across the laser line the intensity distribution is approx. Gaussian.
The laser has integrated electronics type C for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

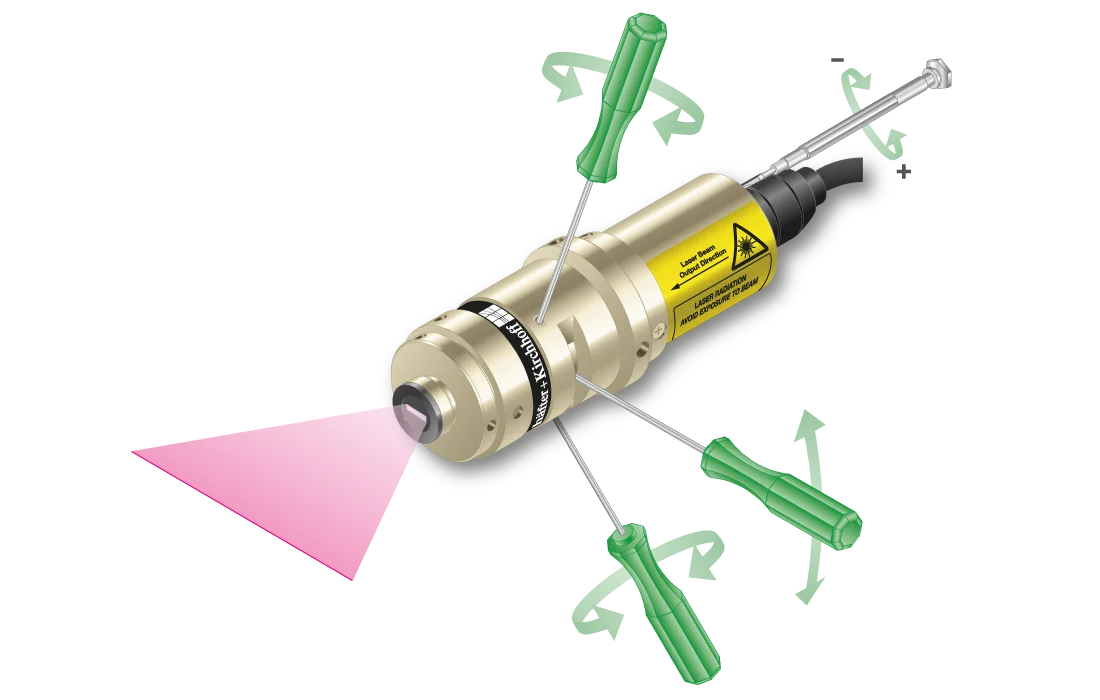

The working distance can be adjusted by adjusting the focus setting. Please note that beam parameters like line length and line width increase proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing.
