48MC-LTS-19.5

Mounting cube for the Schäfter+Kirchhoff multicube™ system

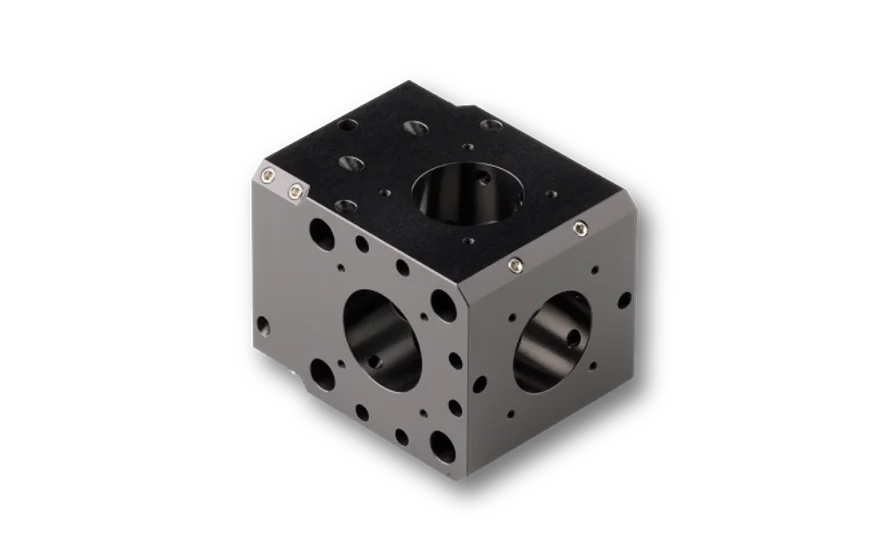

multicube 48MC-LTS-19.5

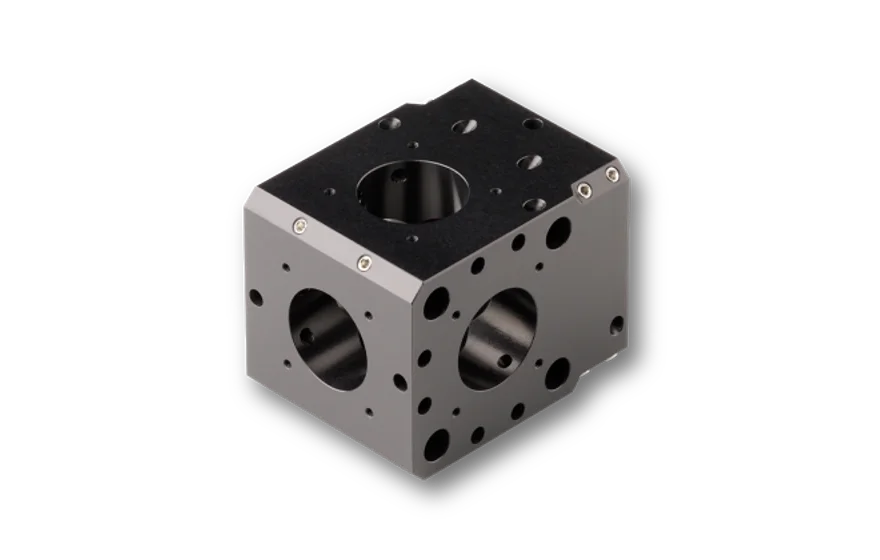

multicube 48MC-LTS-19.5

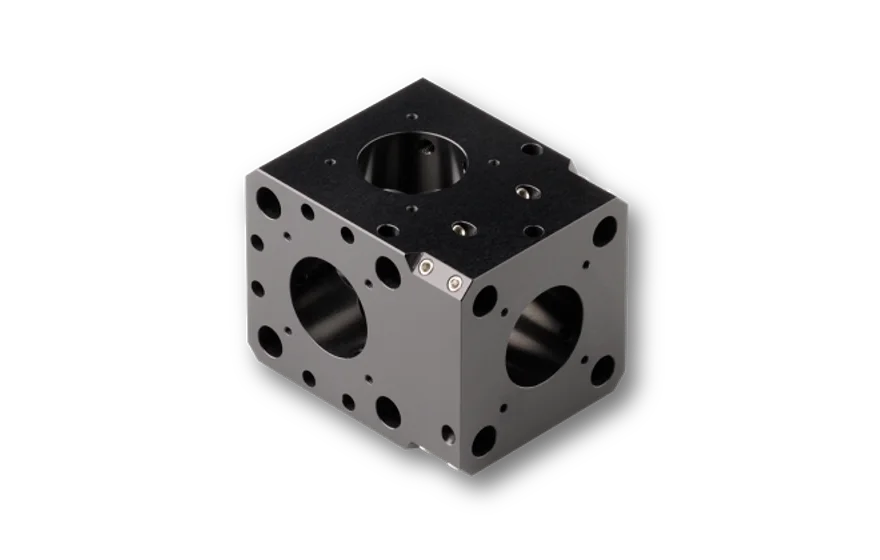

multicube 48MC-LTS-19.5
multicube 48MC-LTS-19.5
multicube 48MC-LTS-19.5
multicube 48MC-LTS-19.5
multicube 48MC-LTS-19.5
multicube 48MC-LTS-19.5

Features

Mounting cube for the Schäfter+Kirchhoff multicube™ system.
For integration of components with Ø 19.5 mm system mount* such as 60SMS Laser Beam Couplers.
Single T-cube for T-arrangements.

Description



Technical data

48MC-LTS-19.5

Order Code
48MC-LTS-19.5
Type
Single cube

for 'T' configuration
Dimensions
42 x 42 x 54 mm
Fitting bore
Ø 19.5 mm
Material
Black anodized aluminum
Weight
147 g

FAQ

  • Compatability of the multicube system
    • Is my system compatible to established 30 mm cage systems or microbench systems?
      The multicube components of series 48 have a rod hole distance of 30 mm. You can attach systems based on those components easily to a 30 mm cage systems or microbench system. More informaion can be found here.

      If you are working with a system based on series 68, there are adapters available, so that they can be used with 30 mm cage systems as well.
    • Is my system compatible to established 60 mm cage systems?

      The multicube components of series 68 have a rod hole distance of 60 mm. You can attach systems based on those components easily to a 60 mm cage systems or microbench system. More informaion can be found here.

      If you are working with a system based on series 48, there are adapters available, so that they can be used with 60 mm cage systems as well.

Downloads

STEP model
980120001904.stp (STEP model)
STEP model
980120001904.stp (STEP model, for registered users only)
