48MC-LTD-19.5

Mounting cube for the Schäfter+Kirchhoff multicube™ system

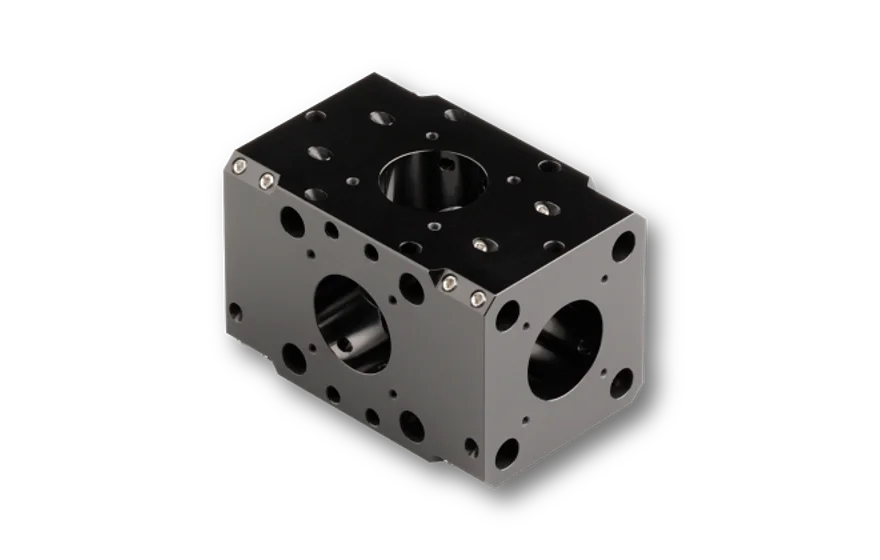

multicube 48MC-LTD-19.5
multicube 48MC-LTD-19.5
multicube 48MC-LTD-19.5
multicube 48MC-LTD-19.5
multicube 48MC-LTD-19.5
multicube 48MC-LTD-19.5
multicube 48MC-LTD-19.5
multicube 48MC-LTD-19.5

Features

Mounting cube for the Schäfter+Kirchhoff multicube™ system.
For integration of components with Ø 19.5 mm system mount such as 60SMS Laser Beam Couplers.
Single X-cube for X-arrangements.

Technical data

48MC-LTD-19.5

Order Code
48MC-LTD-19.5
Type
Single cube

for 'X' configuration
Dimensions
42 x 42 x 66 mm
Fitting bore
Ø 19.5 mm
Material
Black anodized aluminum
Weight
194.5 g

FAQ

  • Compatability of the multicube system
    • Is my system compatible to established 30 mm cage systems or microbench systems?
      The multicube components of series 48 have a rod hole distance of 30 mm. You can attach systems based on those components easily to a 30 mm cage systems or microbench system. More informaion can be found here.

      If you are working with a system based on series 68, there are adapters available, so that they can be used with 30 mm cage systems as well.
    • Is my system compatible to established 60 mm cage systems?

      The multicube components of series 68 have a rod hole distance of 60 mm. You can attach systems based on those components easily to a 60 mm cage systems or microbench system. More informaion can be found here.

      If you are working with a system based on series 48, there are adapters available, so that they can be used with 60 mm cage systems as well.
