48BS-CC-A

Beam splitting plate with adjustable mount

48BS-CC
48BS-CC
48BS-CC
48BS-CC
48BS-CC
48BS-CC
48BS-CC
48BS-CC

Features

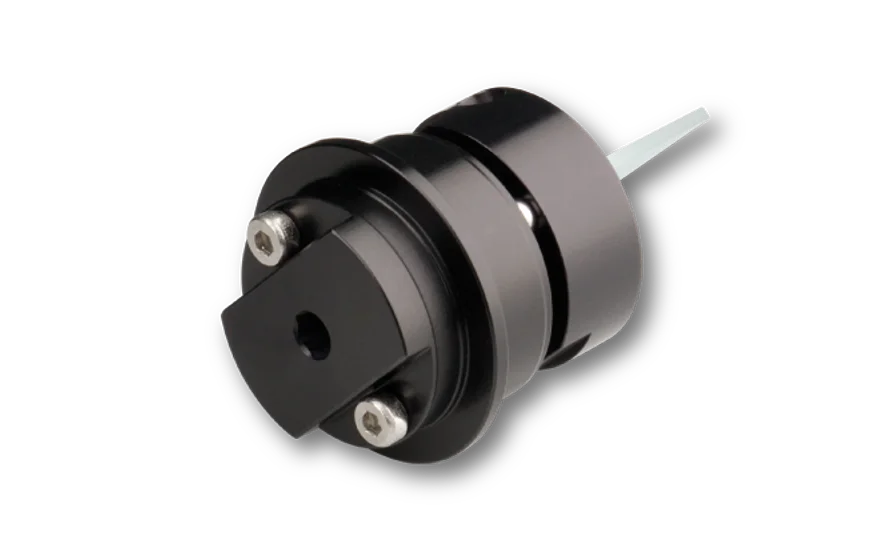

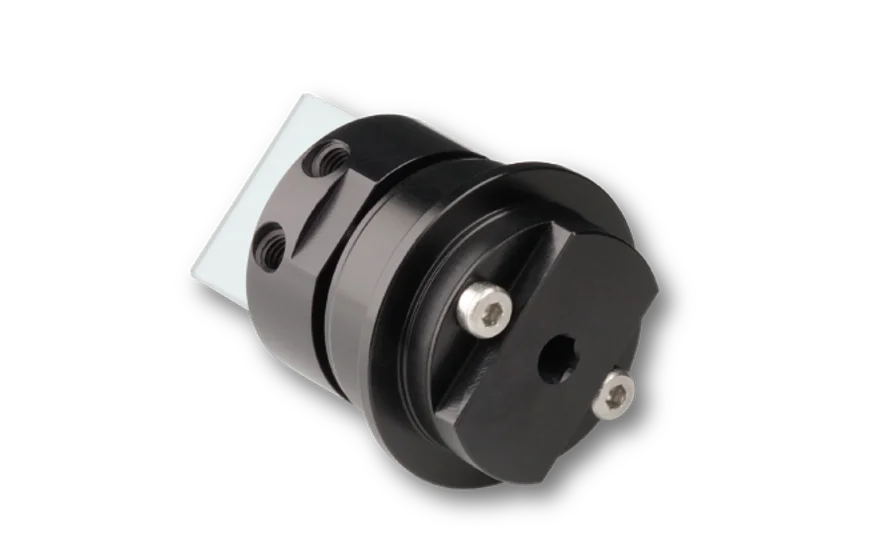

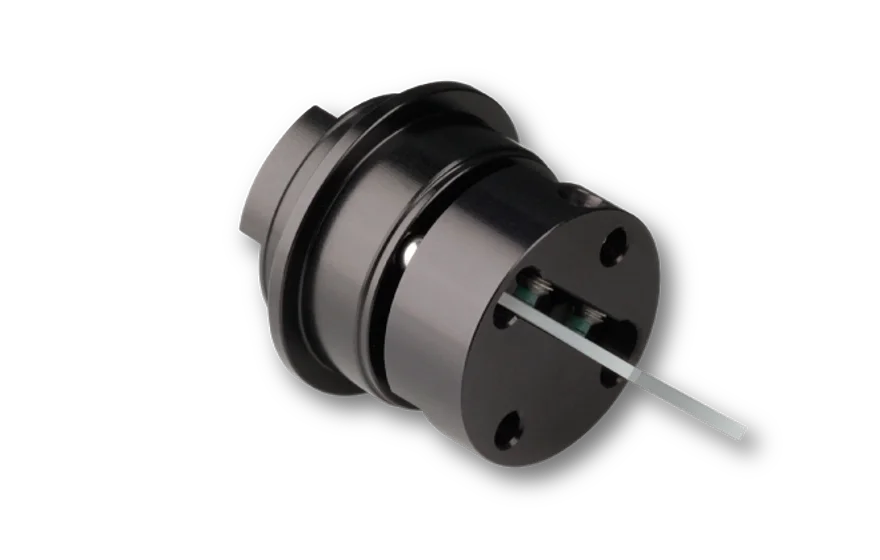

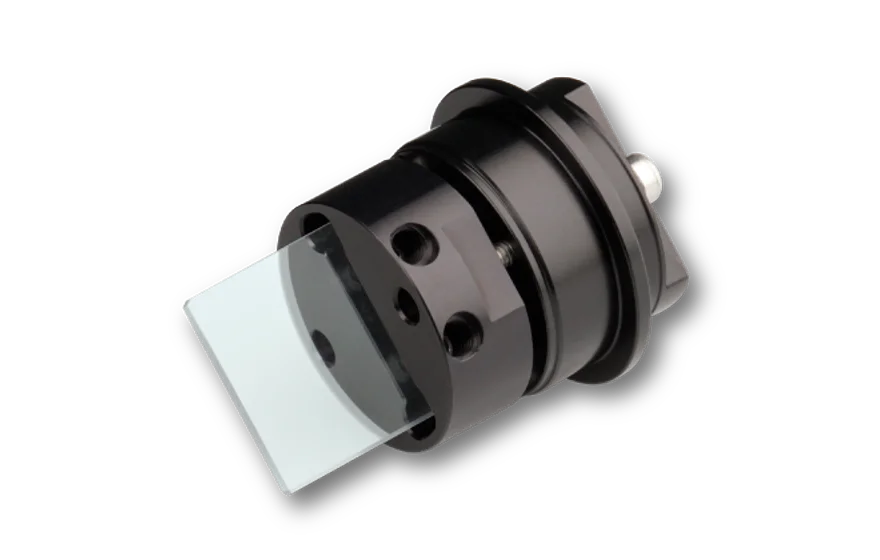

The 48BS-CC-A beam splitting plate is used for monitoring purposes. It is a uncoated fused silica plate. 2 % of p-polarized radiation is tapped. The plate are mount in an adjustable mount for the multicube system.
  • 1 mm fused silica plate
  • Optimized for angle of incidence 45°, p-polarization
  • Fused silica plate
  • 0.3° wedge angle for interference suppression
  • Clear aperture 10 mm
  • Shipped with clamp collar
Please note that the transmitted beam will take an offset of about 0.3 mm.
you can pre-compensate for this offset by means of the lateral adapter type 48MB-19.5AC-D.

Technical data

48BS-CC-A

Order Code
48BS-CC-A
Splitting ratio
2 : 98
Polarization
p-polarized
AR coating back
none
Clear aperture
Ø 10 mm
Thickness
1 mm
Wedge
3 °
Substate
fused silica
Rotation range
360 °
Tilt range
± 1.5 °
Housing material
black anodized aluminum
Weight
16 g

Technotes

Downloads

Dimensional drawing
980120190102.pdf (Dimensional drawing)
STEP model
980120190102.zip (STEP model)
STEP model
980120190102.zip (STEP model, for registered users only)
