Compact, rugged and highly efficient opto-mechanical unit with beam combiner, non-polarizing

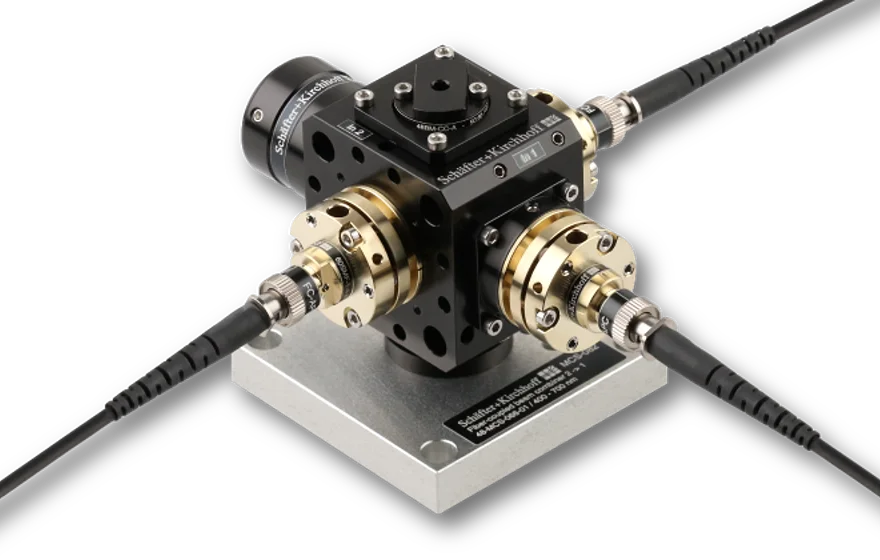

This fiber-coupled Beam Combiner 2 ⇾ 1 is a compact opto-mechanical unit that combines 2 fiber -oupled sources into 1 output fiber cable with high efficiency.
Optical Setup
The input ports are fiber-coupled to PM or SM fiber cables, respectively.
The radiation is superimposed by means of a 50:50 non-polarizing beam splitter. I.e. only 50 % of the sources are available at the output port, respectively. The other 50 % are dumped in a light trap.
Fiber Couplers
A fundamental component of a fiber-coupled Beam Splitter are the Laser Beam Couplers, which are the inputs into the opto-mechanical unit collimating the input radiation and, finally, couples the radiation back into the common polarization-maintaining fiber cable. The stability of the total Beam Splitter is determined by the stability of the laser beam coupler.
How to order
For a detailed quotation please additionally specify
Beam Combiner 2 ⇾ 1, 48-MCS-066
