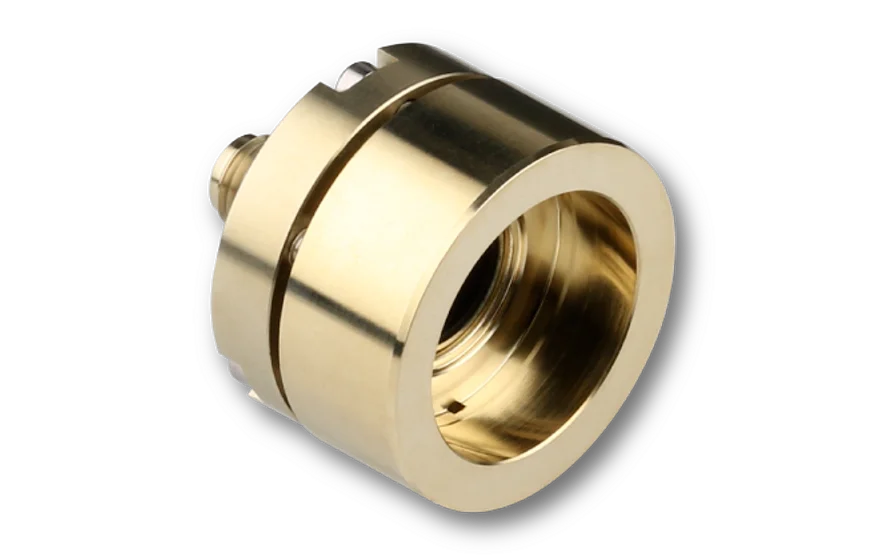

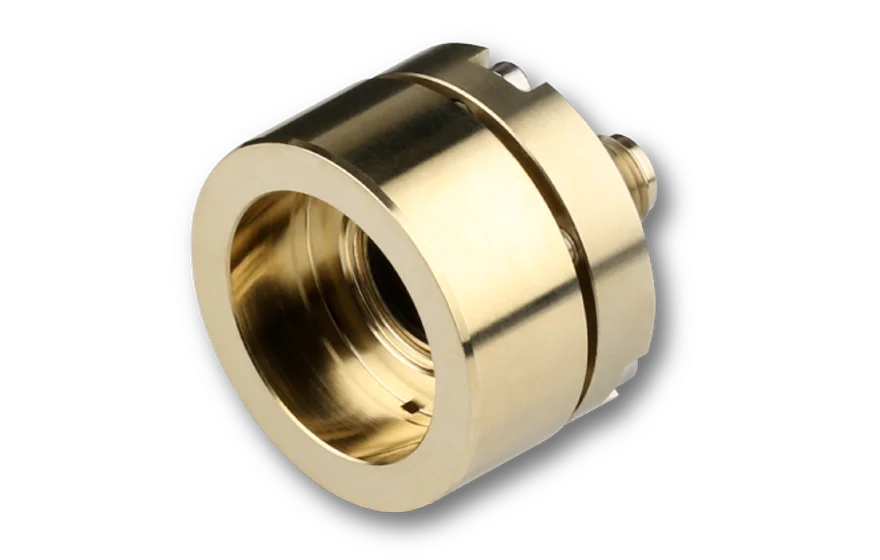

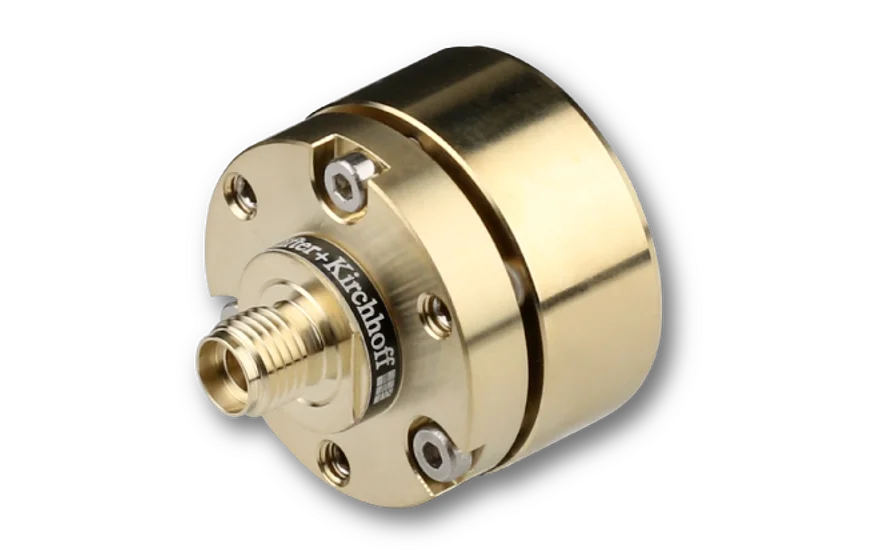

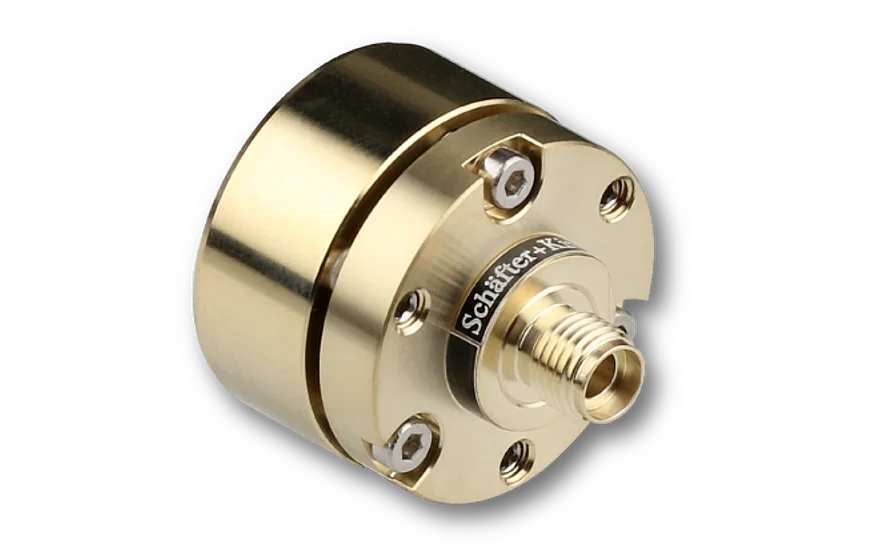

25AM-23-SMA

Bulkhead fiber adapter SMA APC (5°) to Ø 25 mm with TILT alignment

Features

Bulkhead fiber adapter
  • Receptacle type SMA APC (5°)
  • Outer diameter Ø 25 mm
  • Inclined coupling axis
  • TILT alignment
  • With integrated TILT adjustment

Technical data

25AM-23-SMA

Order Code
25AM-23-SMA
Adapter
Outer diameter
SMA APC

Ø 25 mm

Inclined coupling axis
2.3° (for 5° polished connectors)
TILT alignment
± 1.5°
Material
Nickel silver
Weight
45 g

Downloads

010820001700_kuz.pdf (Dimensional drawing)
010820001700.stp (STEP model)
010820001700.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

Screwdriver WS 1.2
Hex key WS 1.5
