19.5AC-4-FC-TI

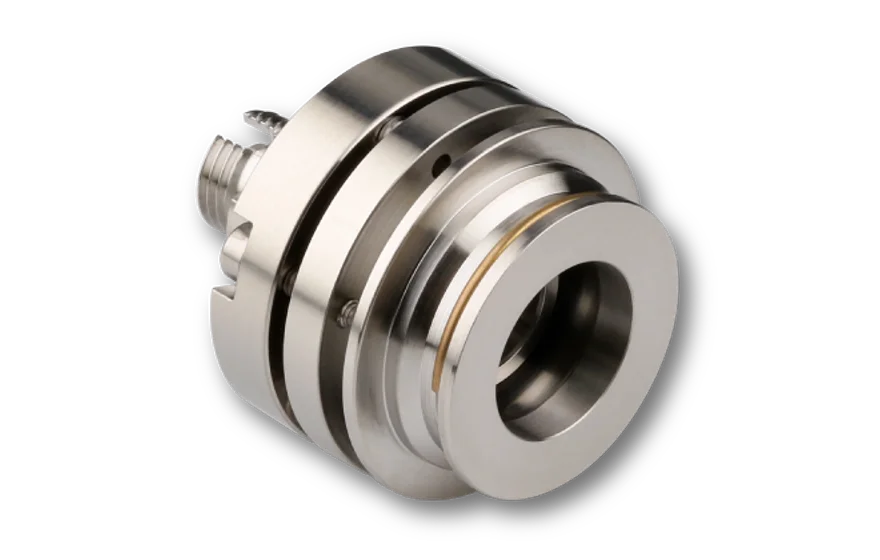

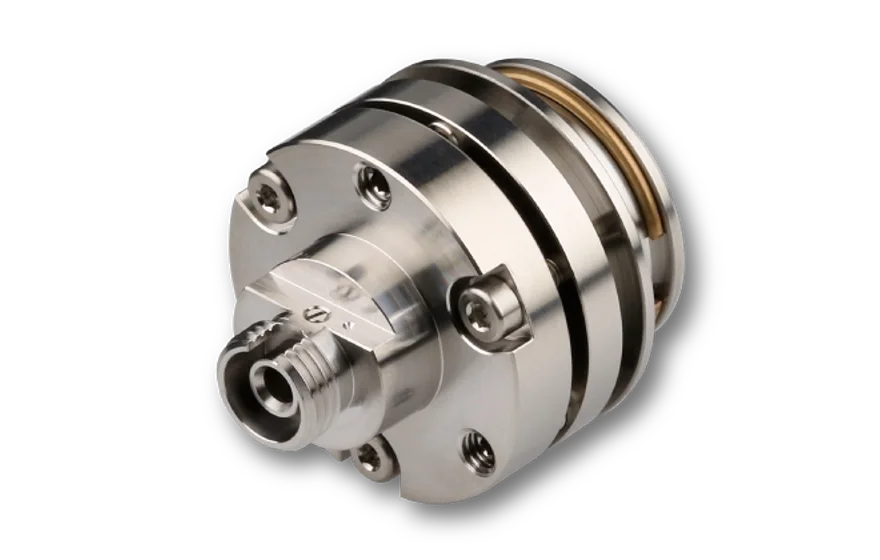

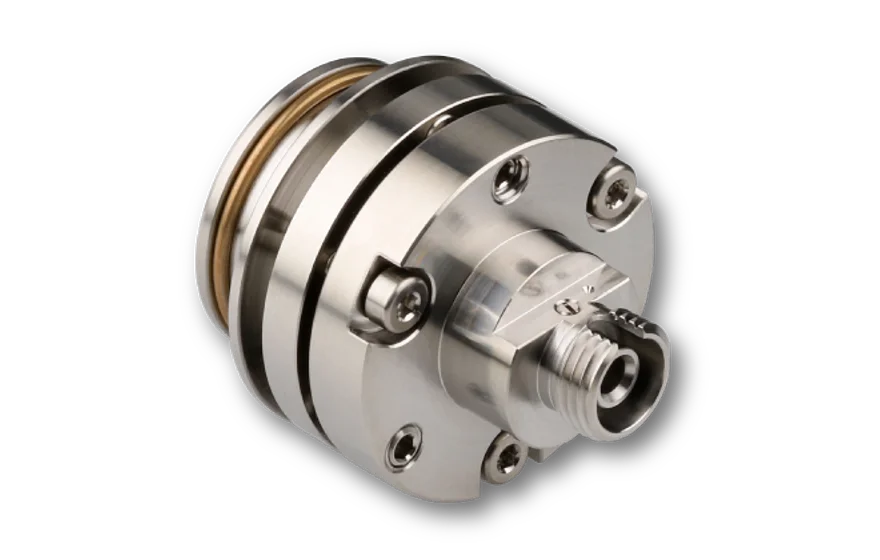

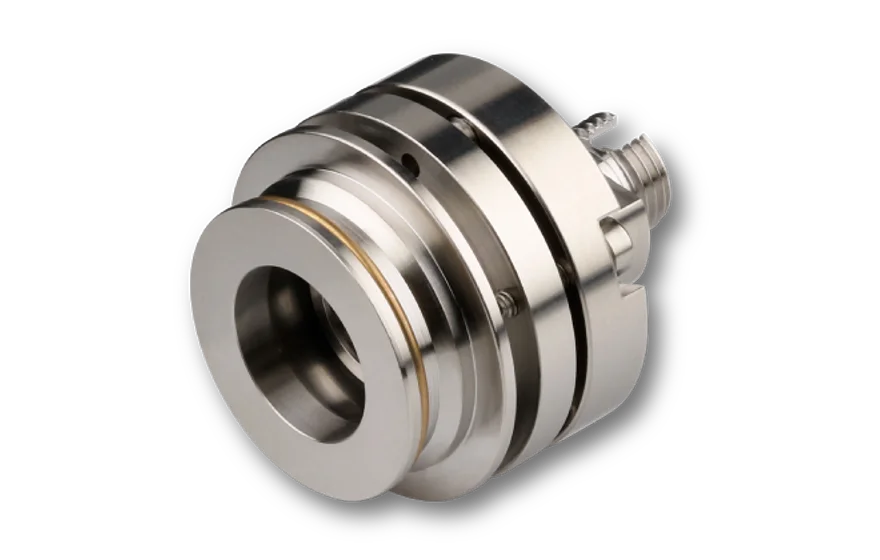

Bulkhead fiber adapter FC APC to system mount Ø 19.5 mm with TILT alignment. Made of Titanium

19.5AC-4-FC-Ti
19.5AC-4-FC-Ti
19.5AC-4-FC-Ti
19.5AC-4-FC-Ti

Features

Bulkhead fiber adapter
  • Receptacle type FC APC
  • System mount Ø 19.5 mm
  • Inclined coupling axis
  • TILT alignment
  • Made of Titanium
  • With integrated TILT adjustment

Technical data

19.5AC-4-FC-TI

Order Code
19.5AC-4-FC-TI
Adapter
System mount
FC APC

Ø 19.5 mm


Steel ring

Inclined coupling axis
4° (for 8°-polished connectors)
TILT alignment
± 1.5°
Material
Titanium
Weight
24 g
RoHS compliant
Yes

Dimensions (for a complete dimensional drawing please refer to the downloads section)

19.5AC-4-FC-Ti

Downloads

970920520603.pdf (Dimensional drawing)
970920520603.stp (STEP model)
970920520603.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

Screwdriver WS 1.2
Hex key WS 1.5
