13MM-S500-4+55CM-640-16-H22-T15-C-6

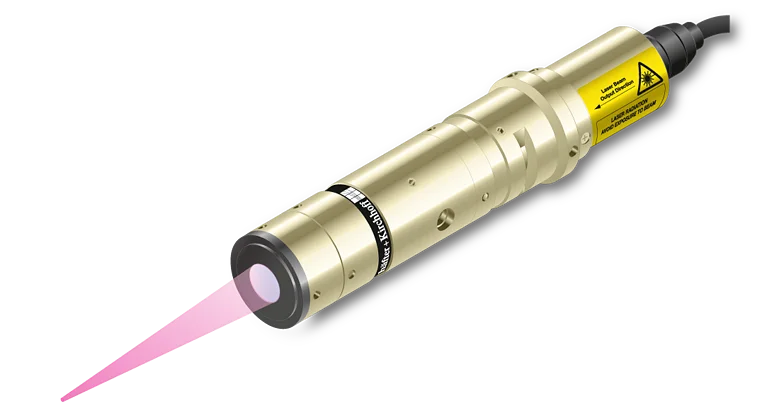

Laser Macro Focus Generator with approx. circular beam profile

13MM-S500-4+55CM-640-16-H22-T15-C-6

Features

Laser spot with approx. circular beam profile and extended depth of focus.
  • Spot diameter: 0.146 x 0.132 mm
  • Wavelength: 640 nm
  • Working distance: 483 mm
  • Depth of focus: 44.6 mm
  • Macro Focus Generator for extended depth of focus

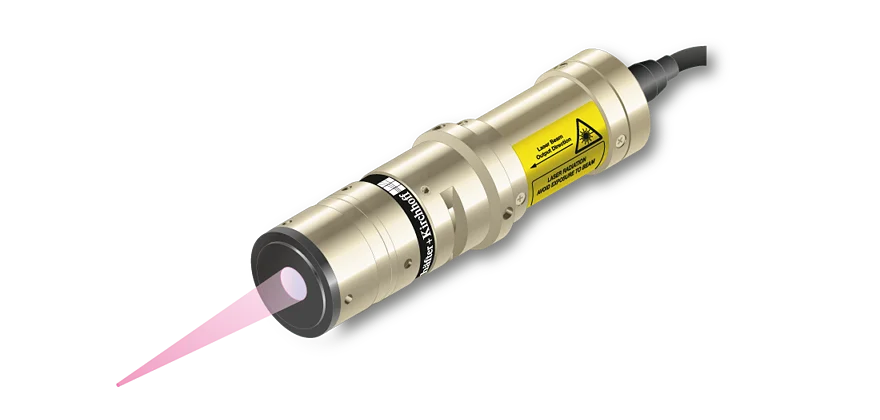

Macro Focus Generator for extended depth of focus

Description

The laser diode beam source type 13MM-S500-4+55CM-640-16-H22-T15-C-6 produces a circular laser spot with extended depth of focus. The beam profile is approx. Gaussian. More precisely it has an elliptical intensity distribution clipped by a circular aperture.

The laser has integrated electronics type C for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

The working distance can be adjusted by adjusting the focus setting. Please note that the spot diameter increases proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing.

Technical data

13MM-S500-4+55CM-640-16-H22-T15-C-6

Series
13MM
Order Code
13MM-S500-4+55CM-640-16-H22-T15-C-6
Line profile
Gaussian Intensity Distribution
Wavelength
640 +5/-5 nm
Laser output power
16 mW
Laser safety class
3B
Focussing range
410-815 mm
Working distance
483 mm
Spot height
0.132 mm
Spot width
0.146 mm
Depth of focus
44.6 mm
Diameter laser module
25/28 mm
Module length
84.3 mm
Installation length
597.3 mm
Cable length
1.5 m
Connector type
Lumberg SV50 IEC 61076-2-106
Supply voltage
5 ± 0.2 V
Max. current consumption
0.25 A
Working temperature
0 - 40 °C
Modulation inputs
Analog
TTL
Input resistance
22 kOhm
22 kOhm
Max. modulation frequency
100 kHz
100 kHz
Modulation delay ON/OFF
1/0.5 µs
2/1 µs
Rise / Fall time
3/2 µs
3/2 µs

Accessories

50HD-15
Hex key WS 1.5
9D-12
Screwdriver WS 1.2
13MK-25-36-10-F
Mounting Console with flat base plate
13MK-25-36-10-M
Mounting Console with base plate with dovetail profile
PS051003E
Power Supply 5 V
