FeaturesLaser spot with elliptical Gaussian beam profile.
- Spot diameter: 0.021 x 0.071 mm
- Wavelength: 635 nm
- Working distance: 245 mm

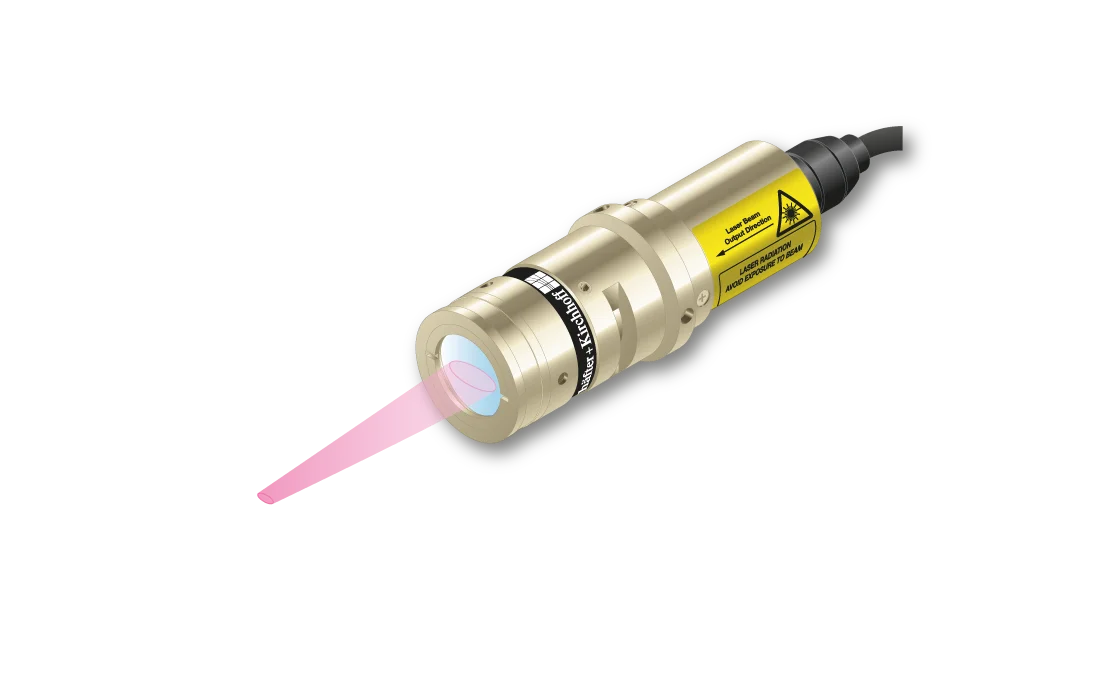

Laser Micro Focus Generator with elliptical Gaussian beam profile
The laser diode beam source type 13M-S250+55CM-635-11-H10-T12-C-6 produces an elliptical laser spot with elliptical Gaussian intensity distribution.
The laser has integrated electronics type C for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.
The working distance can be adjusted by adjusting the focus setting. Please note that the spot diameter increases proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing.
