Features
Laser line with a fan angle, approx. uniform intensity distribution and extended depth of focus.- Line length: 80 mm
- Line width: 136 µm
- Wavelength: 660 nm
- Working distance: 964.5 mm
- Depth of focus: 60 mm
Description

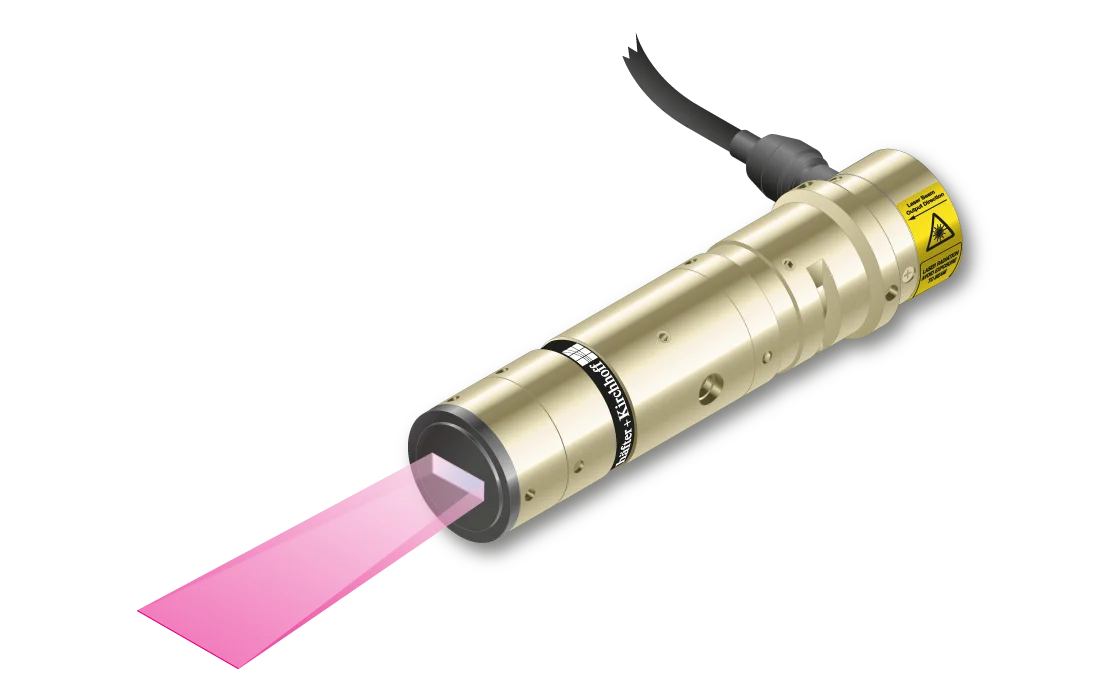

The laser diode beam source type 13LNM165-S1000-7+90CR-660-15-M26-M60-C-6 has a fan angle of 3.8°, approx. uniform intensity distribution along the laser line and extended depth of focus.
More precisely, it is Gaussian clipped by an aperture with an edge intensity of 73 %. Across the laser line the intensity distribution is Gaussian.

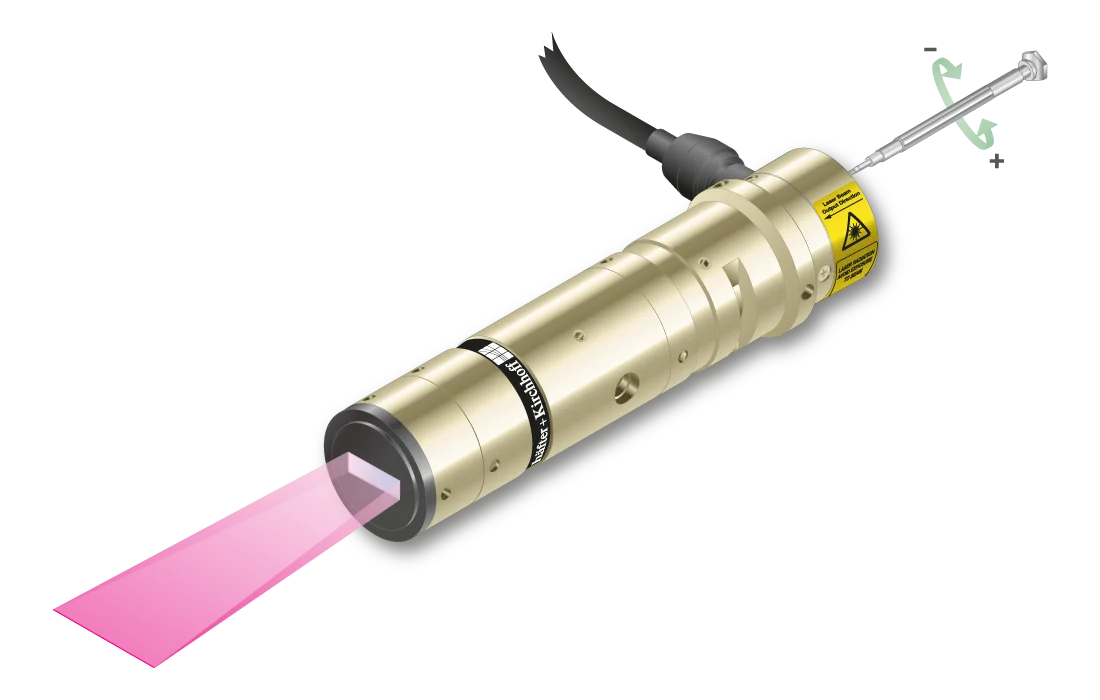

The laser has integrated electronics type C for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.
For this laser type the working distance is fixed. A fine-adjustment of the distance between laser and target is recommended for fine-focusing in order to achieve minimal line width.
Technical data
13LNM165-S1000-7+90CR-660-15-M26-M60-C-6
Series
13LNM165
Order Code
13LNM165-S1000-7+90CR-660-15-M26-M60-C-6
Line profile
Constant Intensity Distribution
Line type
Laser Macro Line
Wavelength
660 +5/-5 nm
Laser output power
15 mW
Laser safety class
3B
Fan angle α
3.8 deg
Focussing range
964.5-964.5 mm
Working distance
964.5 mm
Line length
80 mm
Line width
0.136 mm
Depth of focus
60 mm
Edge intensity
73 %
Diameter laser module
25/28 mm
Module length
118.4 mm
Installation length
1082.9 mm
Cable length
1.5 m
Connector type
Lumberg SV50 IEC 61076-2-106
Supply voltage
5 ± 0.2 V
Max. current consumption
0.25 A
Working temperature
0 - 40 °C
Modulation inputs
Analog
TTL
Input resistance
22 kOhm
22 kOhm
Max. modulation frequency
100 kHz
100 kHz
Modulation delay ON/OFF
1/0.5 µs
2/1 µs
Rise / Fall time
3/2 µs
3/2 µs
