12AF-4-FC

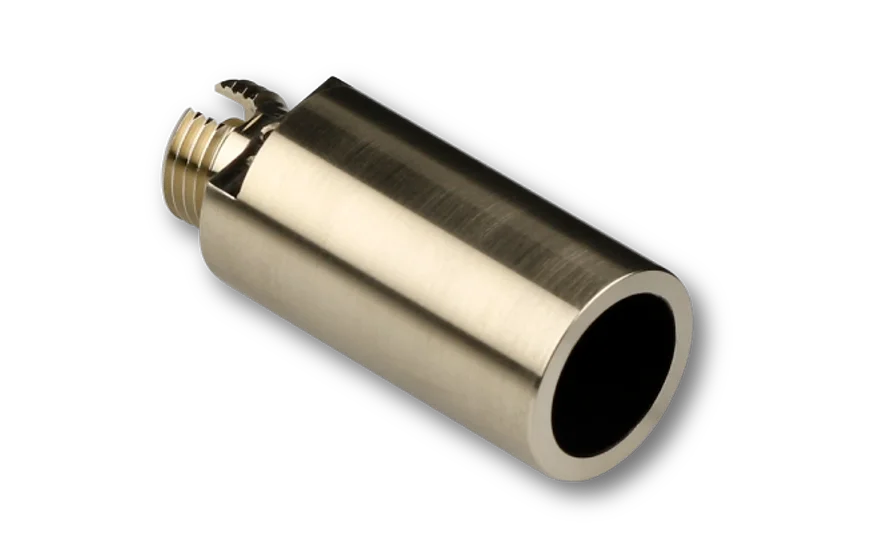

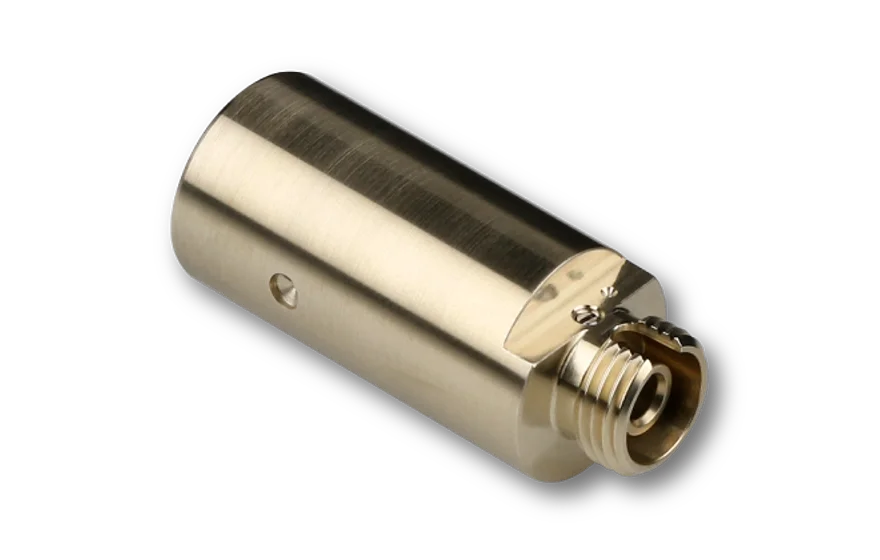

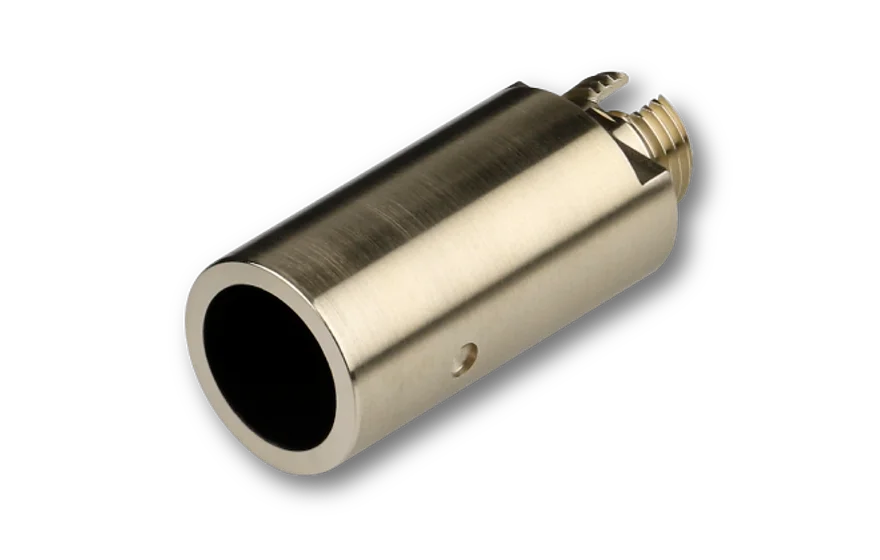

Bulkhead fiber adapter FC APC to Ø 12 mm

12AF-4-FC
12AF-4-FC
12AF-4-FC
12AF-4-FC

Features

Bulkhead fiber adapter
  • Receptacle type FC APC
  • Outer diameter Ø 12 mm
  • Inclined coupling axis

Technical data

12AF-4-FC

Order Code
12AF-4-FC
Adapter
Outer diameter
FC APC

Ø 12 mm

Inclined coupling axis
4° (for 8° polished connectors)
Material
Nickel silver
Weight
12 g
RoHS compliant
yes

Downloads

970920520622.pdf (Dimensional drawing)
970920401105.stp (STEP model)
970920401105.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

Screwdriver WS 1.2
