10AF-4-FC+PP1020

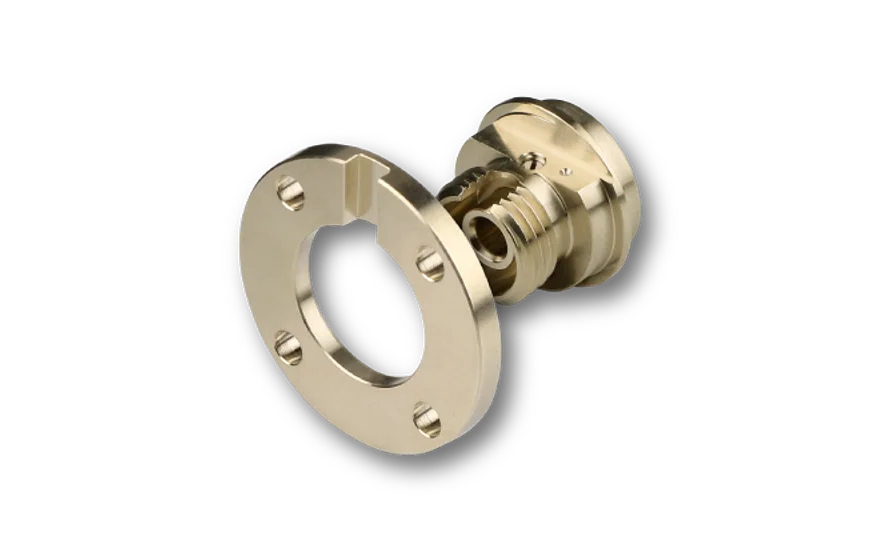

Bulkhead fiber adapter FC APC with 20 mm flange

10AF-4-FC+PP1020
10AF-4-FC
PP1020

Features

Bulkhead fiber adapter
  • Receptacle type FC APC
  • Flange mount
  • Ø 20 mm flange included
  • Inclined coupling axis

Technical data

10AF-4-FC+PP1020

Order Code
10AF-4-FC+PP1020
Adapter
Flange mount
FC APC
Inclined coupling axis
4° (for 8° polished connectors)
Flange
Ø 20 mm, included
Material
Nickel silver
Weight
6 g

Downloads

970920520602.pdf (Dimensional drawing)
970920520602.zip (STEP model)
970920520602.zip (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

Screwdriver WS 1.2
