Description

The fiber-coupled Laser Diode Beam Sources of type 51nano have reduced power noise (typ. < 0.15 % of P_o (RMS, Bandwidth < 1 MHz)), reduced coherence length (≈ 300 µm) and a lowered speckle contrast.

The undesirable features of power noise and mode hopping are eliminated in the 51nano series by exciting numerous longitudinal modes of emission while simultaneously lowering signal noise significantly to typ < 0.15 % RMS of P_o. The induced broadening of the spectrum, in a controlled and stable way, has the advantage of considerably reducing the coherence length of the laser beam.

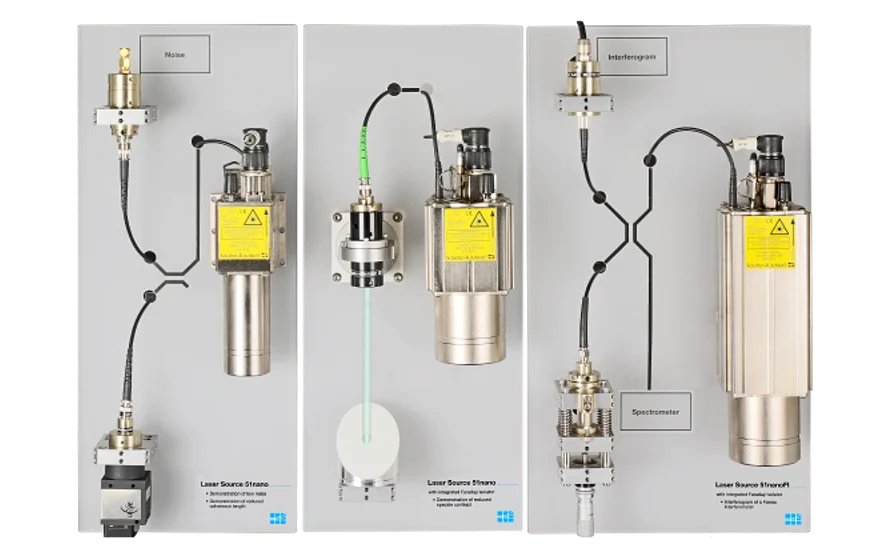

Exhibtion setup

The 51nano setup illustrates these prominent features. In order to better show the positive effects, the laser can be switched from standard to 51nano operation mode (not-standard configuration). The setup consists of 3 separate 51nano setups and shows 5 experiments:

First Setup: 1. Demonstration of reduced power noise and 2. Demonstration of reduced interference

Second setup: 3. Demonstration of reduced speckle contrast

Third setup: 4. Sepctrometer and 5. Fabry-Perot interferometer as application sample [more]

Technotes

Featured Products

51nano-S (polarization-maintaining)

Fiber-coupled low coherence laser source with polarization-maintaining fiber cable

51nanoFI-S with Faraday isolator (PM)

Fiber-coupled low coherence laser source with polarization-maintaining fiber cable

Fiber Collimator Series 60FC-T

for collimating large beam diameters and with additional TILT adjustment
