Industry-grade fiber coupling

Industry-grade fiber coupling

Schäfter+Kirchhoff offer fiber coupling sets for laser diode modules and DPSS laser modules from various manufacturers.
The fiber coupling sets are based on the 60SMF laser beam coupler and a PMC fiber cable.
Fiber Coupling of a Coherent Obis
Fiber Coupling of a Coherent Obis

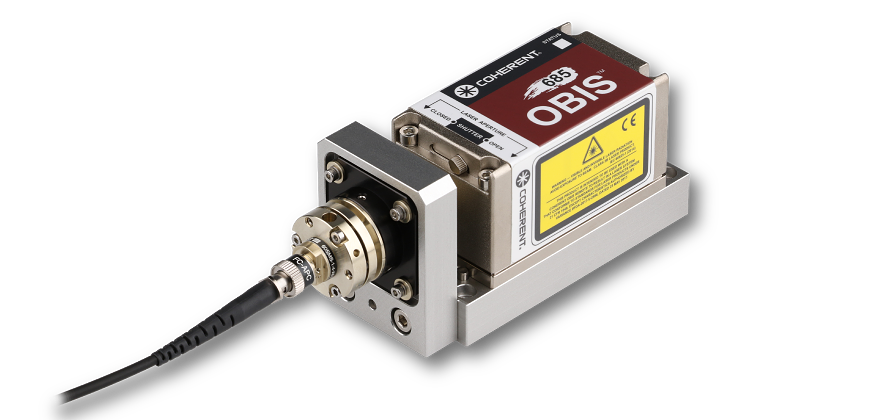

Fiber coupling of a OBIS LX/LS laser module by Coherent

Industry-grade fiber coupling of a Coherent OBIS
  • Coupling efficiency >70 %
  • Wavelengths: 372 nm - 980 nm
  • Polarization extinction ratio ≥ 26 dB
  • Vibration insensitive, persistently stable
  • Long-term stability
  • Reliable coupling
Fiber-Coupling Set consists of:
  • Mounting console 48MP-OBIS
  • Laser beam coupler serie 60SMF
  • Polarization-maintaining fiber type PMC
