Mounting Accessories

for Line Scan Camera System with mounting diameter Ø47.5 mm

Mounting Accessories for Line Scan Cameras with mounting diameter Ø47.5 mm

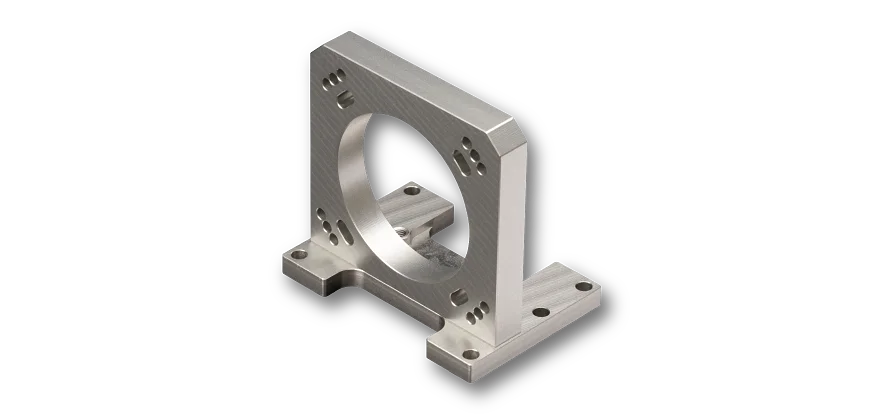

Mounting bracket SK5105-L
Mounting bracket SK5105-L
Mounting bracket for line scan cameras with outer diameter Ø 65 mm or outer edge length 65x65 mm and mounting dimension Ø 47.5 mm.

Matching clamping claws: SK5101

For camera configurations with tube length > 55 mm using extensions rings ZR-L

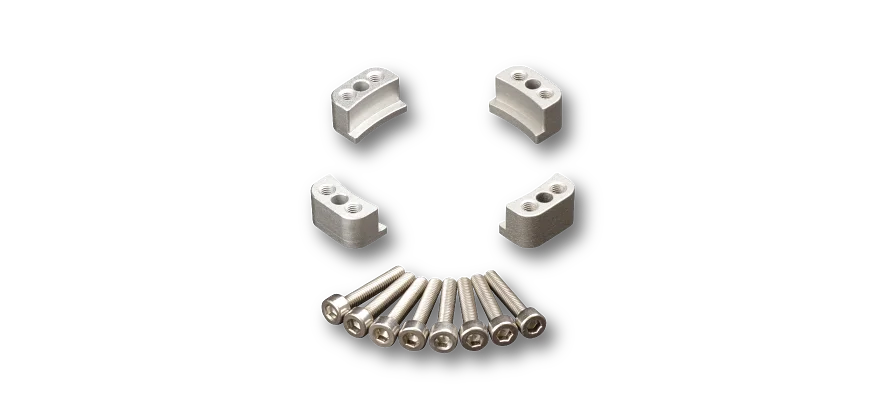

Clamps for mounting bracket SK5105 or SK5105-L
  • Set of 4 pcs.
  • Incl. 8 psc. hex socket screw ISO4762 M3x12
