Focus Adapters

to M39x1/26" (Leica) lenses for all lens mount variants of the Line Scan Cameras

The adapters contain a fine-screw drive which is secured with a clamping ring. The adjustment range for most variants is 11.0 mm.

Freely rotatable versions additionally consist of a fixable V-groove junction. This allows lenses with a specified preferred direction to be aligned in the direction of the sensor line.

The indicated lengths are optical path lengths.

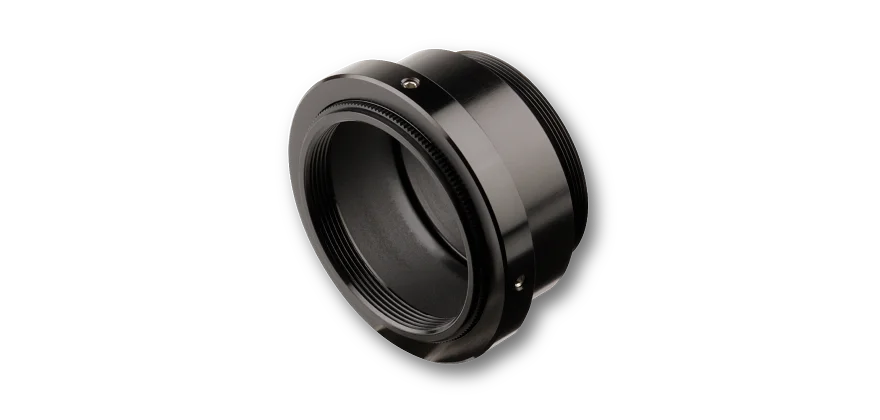

Focus adpater FA22-40

Products

Focus adapter from C-Mount to M39x1/26" (Leica) with adjustable length from 22 to 33 mm
Focus adapter from M39x1/26" (Leica) to M39x1/26" (Leica) with adjustable length from 22 to 33 mm
Focus adapter from M40x0.75 to M39x1/26" (Leica) with adjustable length from 22 to 33 mm
Focus adapter from M40x0.75 to M39x1/26" (Leica) with adjustable length from 28 to 39 mm and to any angle of rotation (V-groove)
Focus adapter from M40x0.75 to M39x1/26" (Leica) with adjustable length from 35 to 46 mm and to any angle of rotation (V-groove)
Focus adapter from M42x1 to M39x1/26" (Leica) with adjustable length from 22 to 33 mm
Focus adapter from M45x0.75 to M39x1/26" (Leica) with adjustable length from 16 to 27 mm
Focus adapter from M45x0.75 to M39x1/26" (Leica) with adjustable length from 22 to 33 mm and to any angle of rotation (V-groove)
Focus adapter from M45x0.75 to M39x1/26" (Leica) with adjustable length from 29 to 40 mm and to any angle of rotation (V-groove)

Order Options

Order CodeMountLength
FA22-CC-Mount22.5 - 33.5 mm
FA22-39M39x1/26" (Leica)22.0 - 33.0 mm
FA22-40M40x0.7522.0 - 33.0 mm
FA22R-40M40x0.7528.0 - 39.0 mm
FA22RL-40M40x0.7534.7 - 45.7 mm
FA22-42M42x1.022.0 - 33.0 mm
FA16-45M45x0.7516.0 - 27.0 mm
FA22R-45M45x0.7522.0 - 33.0 mm
FA22RL-45M45x0.7528.7 - 39.7 mm
