Lens Adapters

to C-Mount lenses for all lens mount variants of the Line Scan Cameras

  • black anodized
  • provide the standardized back focal distance of 17.52 mm

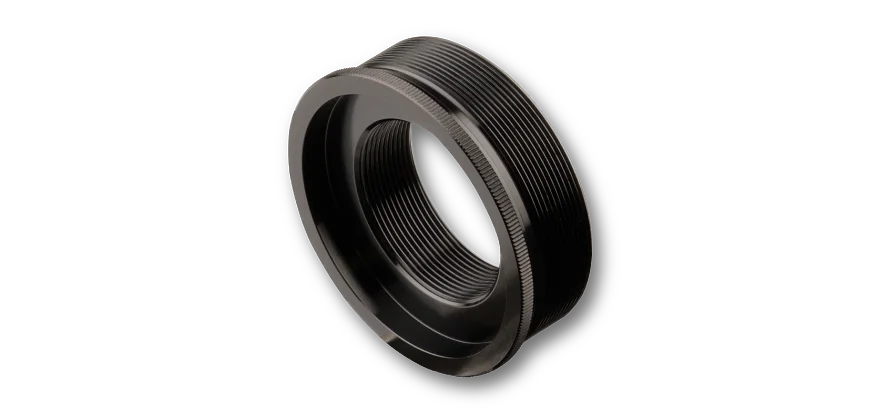

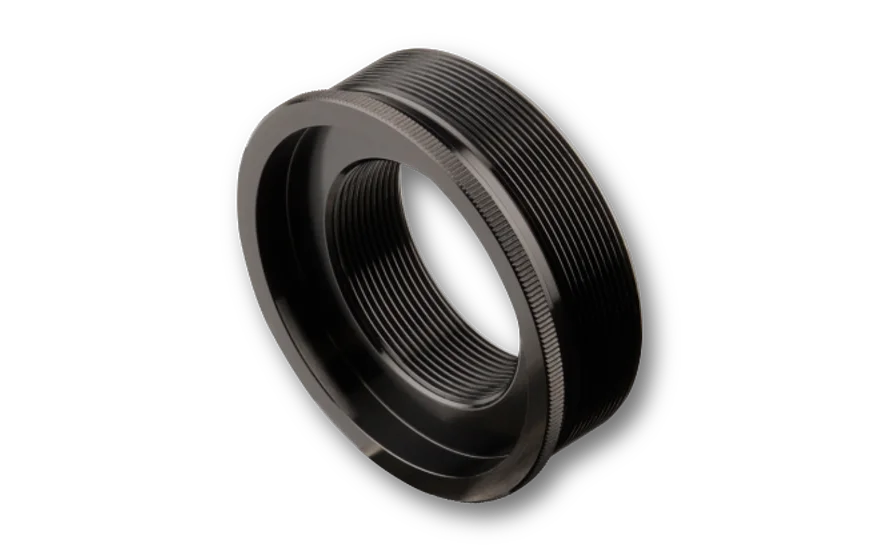

Lens adapter AOC-CM-40

Products

Lens adapter from M40x0.75 (outer thread) to C-Mount (inner thread),
for cameras with 19.5 mm flange focal distance
Lens adapter from M42x1 (outer thread) to C-Mount (inner thread),
for cameras with 10.1 mm flange focal distance
Lens adapter from M45x0.75 (outer thread) to C-Mount (inner thread),
for cameras with 19.5 mm flange focal distance

Order Options

Order CodeMount (Lens)Mount (Camera side)Length (Optical path)
AOC-CM-40C-MountM40x0.75-2.0 mm
AOC-CM-42C-MountM42x1.07.4 mm
AOC-CM-45C-MountM45x0.75-2.0 mm
