Accessories for V46-Mount Lenses

V46-Mount is an objective lens mount with a nominal diameter of 46 mm, which allows the continuous angular alignment of the lens in relation to the camera sensor. Grub screws on the lens engage in a circular V-groove on the adapter. In this way, the optimum alignment can be set for high resolution lenses.

The listed versions with M45x0.75 and M55x0.75 mount are especially designed for the FA26-S45 and FA26-S55 focus adapters.

Further standard or special adapters on request.

Products

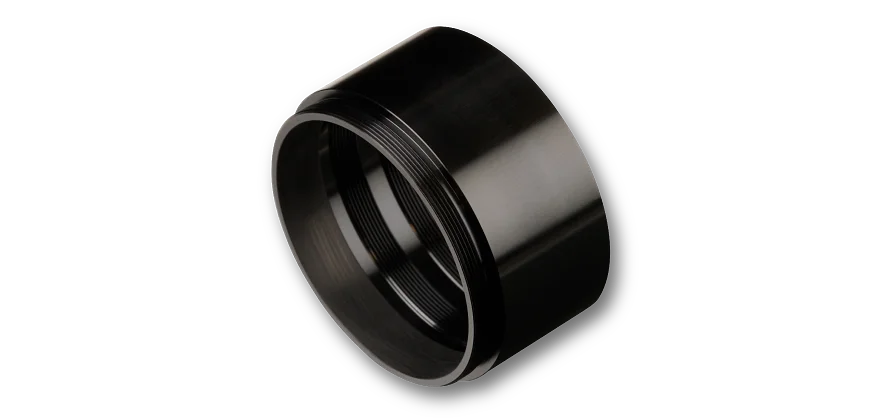

Lens adapter from M55x0.75 to V46-Mount, Aluminium black anodized.
The optical path length is 5.5 mm.
Lens adapter from M45x0.75 to V46-Mount, Aluminium black anodized.
The optical path length is 5.5 mm.

Order Options

Order CodeLens MountCamera MountLength (Optical Path)
FA26-S45M45x0.75Ø 71.25 mm40.5 to 69.5 mm
FA26-S55M55x0.75Ø 71.25 mm50.5 to 79.5 mm
