Accessories for M45-Mount Cameras and Tubes

Various accessories such as extension rings, lens adapters or focus adaters for tube or lens mount in the dimension M45x0.75 on the camera side
M39-45
Lens adapter from M45x0.75 to M39x1/26" (Leica), Aluminium black anodized.
The optical path length is 3.7 mm.
M42-M45-L1

Tube or lens adapter from M42x1.0 to M45x0.75, with mount for mounting bracket SK5105-L, Aluminium black anodized.

The optical path length is 21.9 mm.


AC46-M45
Lens adapter from M45x0.75 to V46-Mount, Aluminium black anodized.
The optical path length is 5.5 mm.

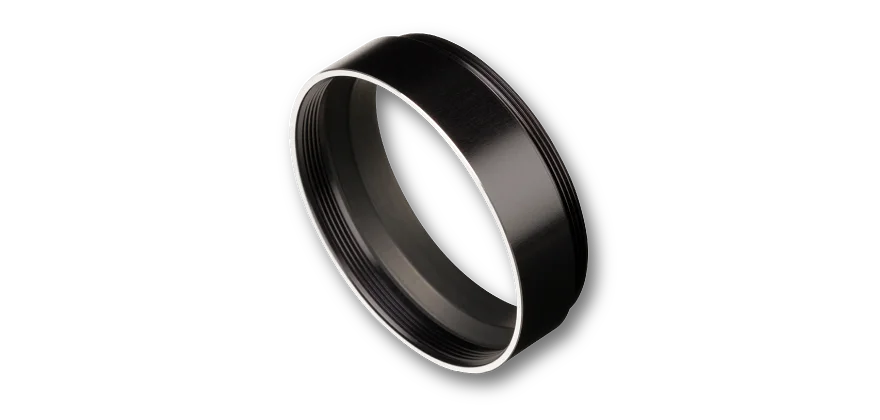

ZR-L-10
Extension Ring for M45x0.75 (inner/outer thread) of length 10 mm

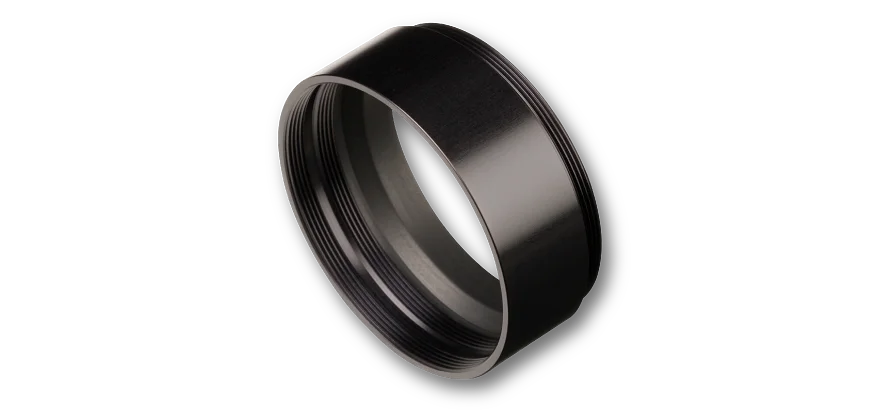

ZR-L-15
Extension Ring for M45x0.75 (inner/outer thread) of length 15 mm

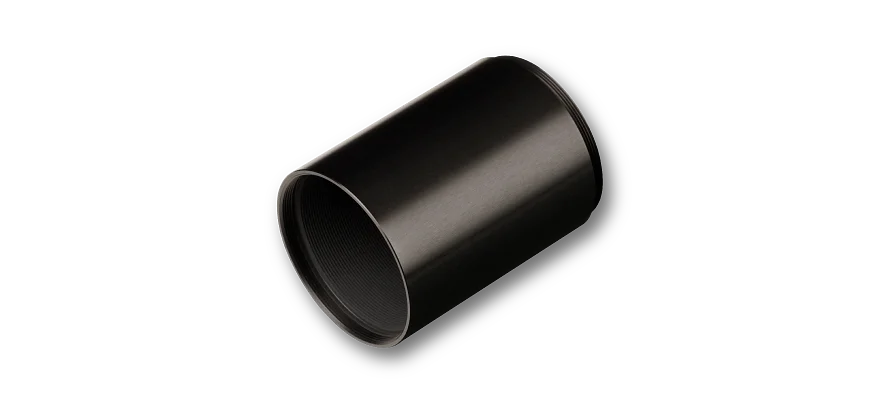

ZR-L-25
Extension Ring for M45x0.75 (inner/outer thread) of length 25 mm
AOC-CM-45
Lens adapter from M45x0.75 (outer thread) to C-Mount (inner thread),
for cameras with 19.5 mm flange focal distance
FA16-45
Focus adapter from M45x0.75 to M39x1/26" (Leica) with adjustable length from 16 to 27 mm
FA22R-45
Focus adapter from M45x0.75 to M39x1/26" (Leica) with adjustable length from 22 to 33 mm and to any angle of rotation (V-groove)
FA22RL-45
Focus adapter from M45x0.75 to M39x1/26" (Leica) with adjustable length from 29 to 40 mm and to any angle of rotation (V-groove)
FA11-M45-AC46-L1
Focus adapter, camera thread M45x0.75, for V46-mount lenses, system length 110 mm, incl. 11 mm extension thread with counter ring, optical path length 77.5 to 88.5 mm
FA11-M45-AC46-L2
Focus adapter, camera thread M45x0.75, for V46-mount lenses, system length 92.5 mm, incl. 11 mm extension thread with counter ring, optical path length 70 to 81 mm

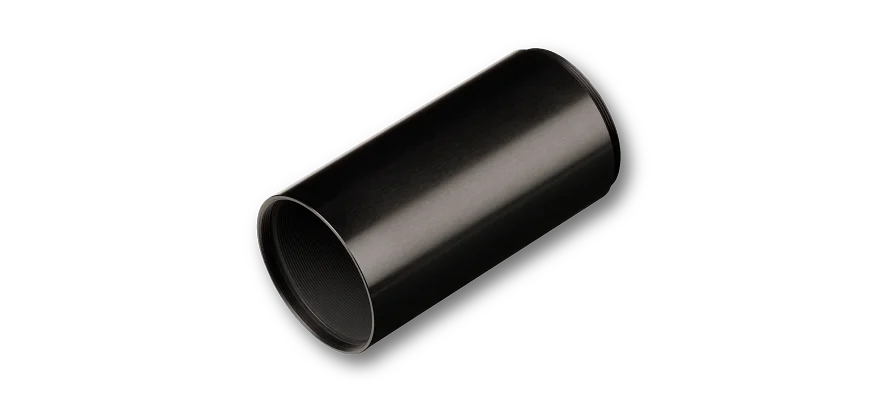

ZR-L-60
Extension Ring for M45x0.75 (inner/outer thread) of length 60 mm
ZR-L-87
Extension Ring for M45x0.75 (inner/outer thread) of length 87.5 mm
