FeaturesSemi-telecentric laser line with constant line length 15mm and approx. uniform intensity distribution.
- Line length: 15 mm
- Line width: 30 µm
- Wavelength: 520 nm
- Working distance: 493 mm
- Low noise laser module (0.1 % RMS, @<1 MHz)
Semi-telecentric Low Noise Micro Line Generator

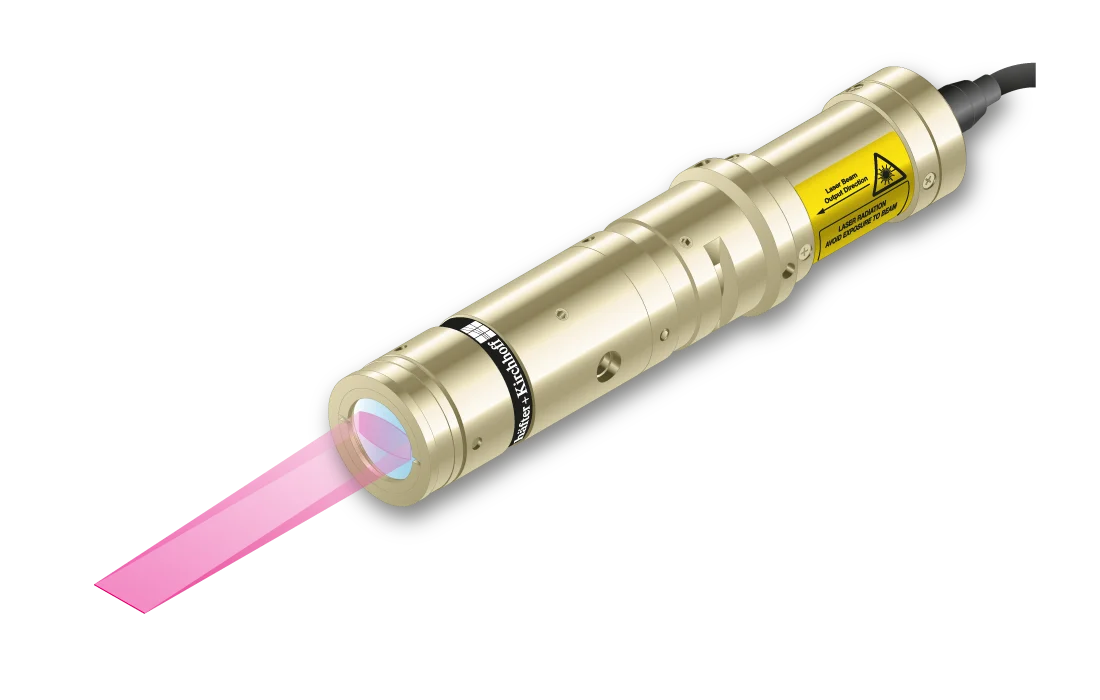

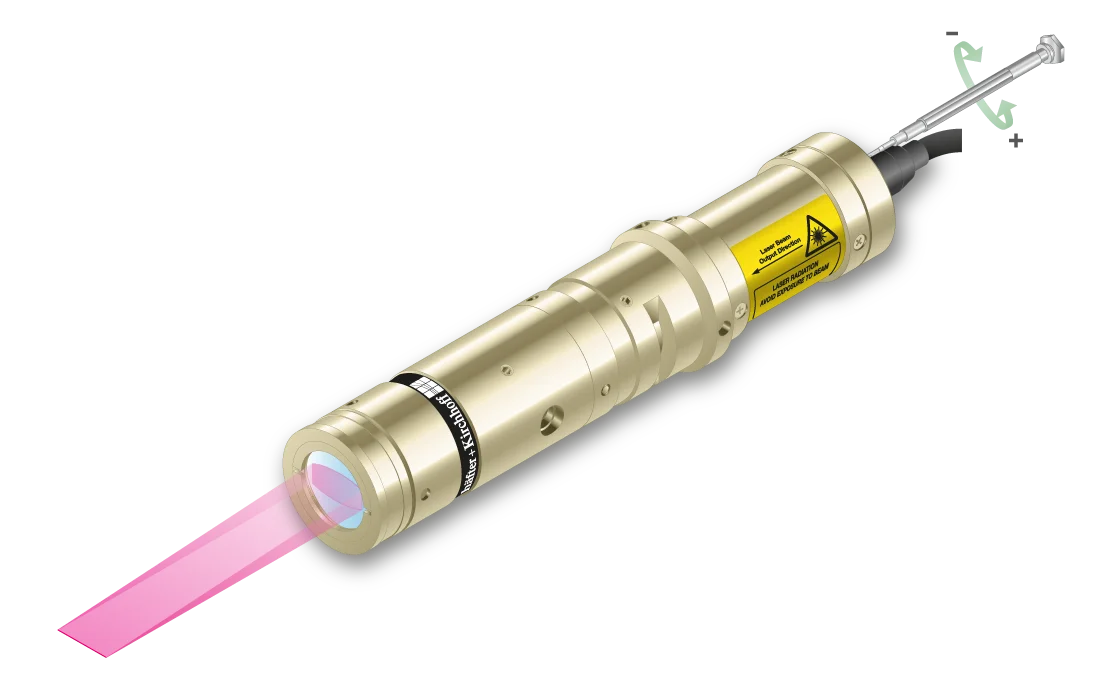

The laser diode beam source type LNC-13LT-500+91CM-520-7-O11-M60-HP-4 produces a semi-telecentric laser line with 15 mm line length. The intensity profile is approx. uniform in line direction. More precisely, it is Gaussian clipped by an aperture with an edge intensity of 77 %. The line width is constant along the laser line. Across the laser line the intensity distribution is Gaussian.
The laser has integrated electronics type HP with micro-controller for control of the laser output power. It is a low noise laser source (0.1 % RMS,@<1 MHz) with reduced coherence length and operates mode-hopping free. Due to the reduced coherence length the speckle contrast might be lowered. Please note that this effect is smaller for smaller lines and spots. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.
For this laser type the working distance is fixed. A fine-adjustment of the distance between laser and target is recommended for fine-focusing in order to achieve minimal line width.
