FeaturesCompact laser spot with rotationally symmetric, Gaussian beam profile.
- Spot diameter: 0.043 x 0.043 mm
- Wavelength: 639 nm
- Working distance: 147 mm

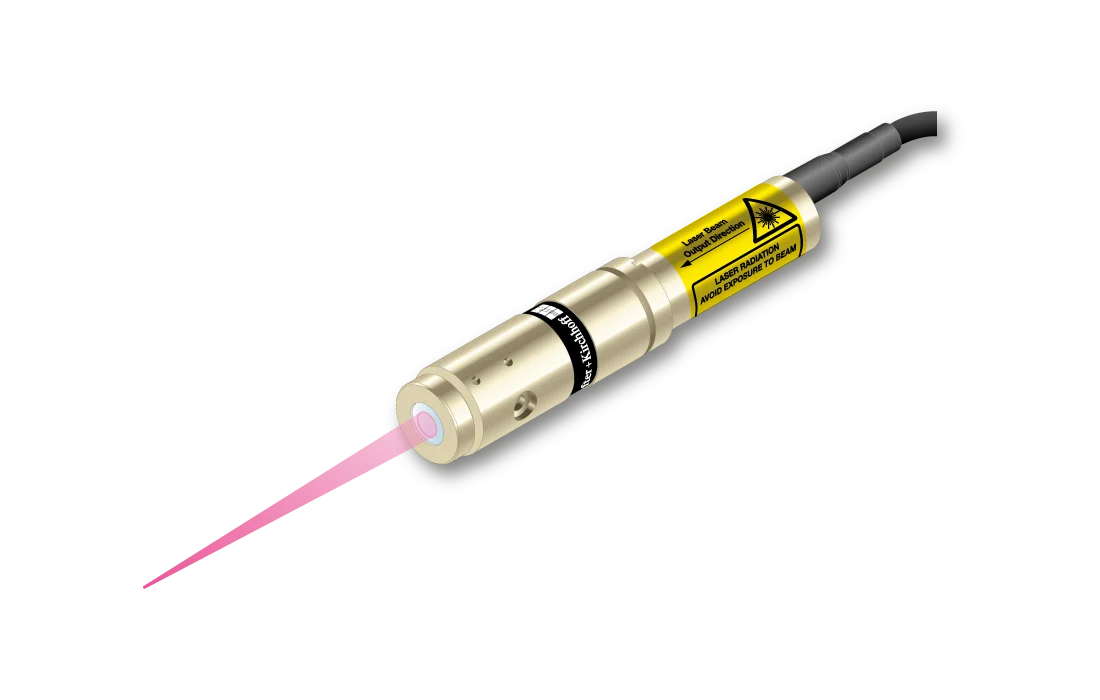

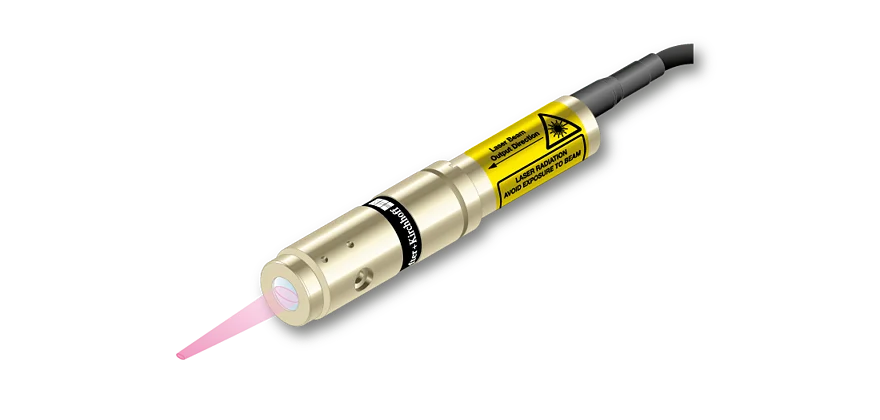

Compact Laser Micro Focus Generator with rotationally symmetric beam profile
The laser diode beam source type 5MC-S150+29CM-639-26-B21-M12-S-6 produces a rotationally symmetric circular laser spot with Gaussian intensity distribution.
The laser has integrated electronics type S for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

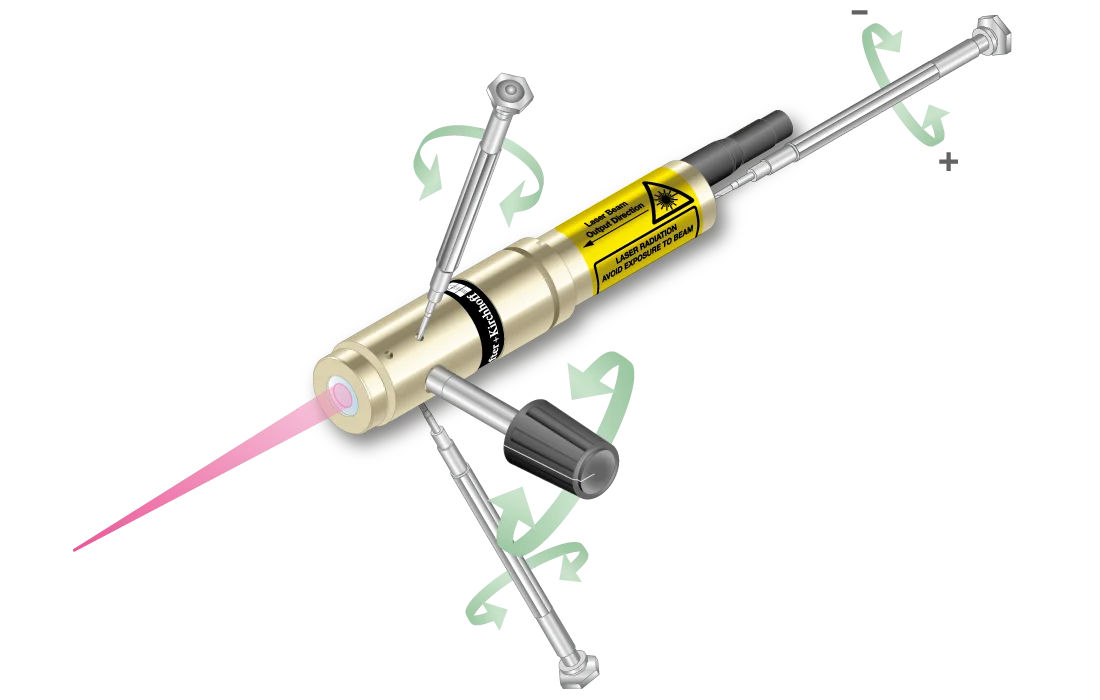

The working distance can be adjusted by adjusting the focus setting. Please note that the spot diameter increases proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing.
