5M-S50+25CM-660-40-M26-A8-S-6

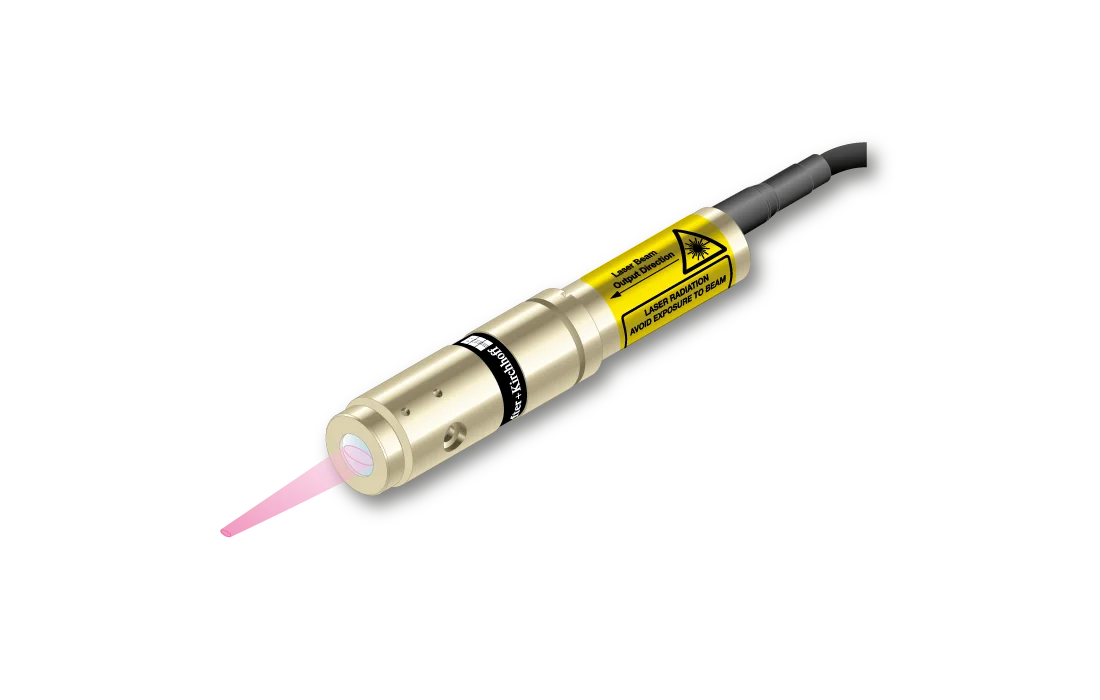

Compact Laser Micro Focus Generator with elliptical Gaussian beam profile

5M-S50+25CM-660-40-M26-A8-S-6
Micro Focus Generator for small spot widths and high power density in the focal planeMicro
Focus

Features

Compact Laser spot with elliptical Gaussian beam profile.
  • Spot diameter: 0.009 x 0.021 mm
  • Wavelength: 660 nm
  • Working distance: 46 mm

Description

The laser diode beam source type 5M-S50+25CM-660-40-M26-A8-S-6 produces an elliptical laser spot with elliptical Gaussian intensity distribution.

The laser has integrated electronics type S for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

The working distance can be adjusted by adjusting the focus setting. Please note that the spot diameter increases proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing.

Technical data

5M-S50+25CM-660-40-M26-A8-S-6

Series
5M
Order Code
5M-S50+25CM-660-40-M26-A8-S-6
Line profile
Gaussian Intensity Distribution
Wavelength
660 +5/-5 nm
Laser output power
40 mW
Laser safety class
3B
Focussing range
35-70 mm
Working distance
46 mm
Spot height
0.021 mm
Spot width
0.009 mm
Rayleigh range
0.183 mm
Diameter laser module
12 mm
Module length
60.7 mm
Installation length
136.7 mm
Cable length
1.5 m
Connector type
Lumberg SV50 IEC 61076-2-106
Supply voltage
5 ± 0.25 V
Max. current consumption
0.25 A
Working temperature
0 - 40 °C
Modulation inputs
Analog
TTL
Input resistance
22 kOhm
22 kOhm
Max. modulation frequency
50 kHz
1000 kHz
Modulation delay ON/OFF
4/0.5 µs
0.05/0.05 µs
Rise / Fall time
5/4 µs
0.1/0.02 µs

Accessories

60EX-4
Eccentric key with a stroke of ± 0.5 mm.
60EX-4-L
Alternative eccentric key with long handle with a stroke of ± 0.5 mm.
9D-12
Screwdriver WS 1.2
PS051003E
Power Supply 5 V
