FeaturesLaser line with a large fan angle and Gaussian intensity distribution.
- Line length: 140 mm
- Line width: 32 µm
- Wavelength: 445 nm
- Working distance: 82 mm

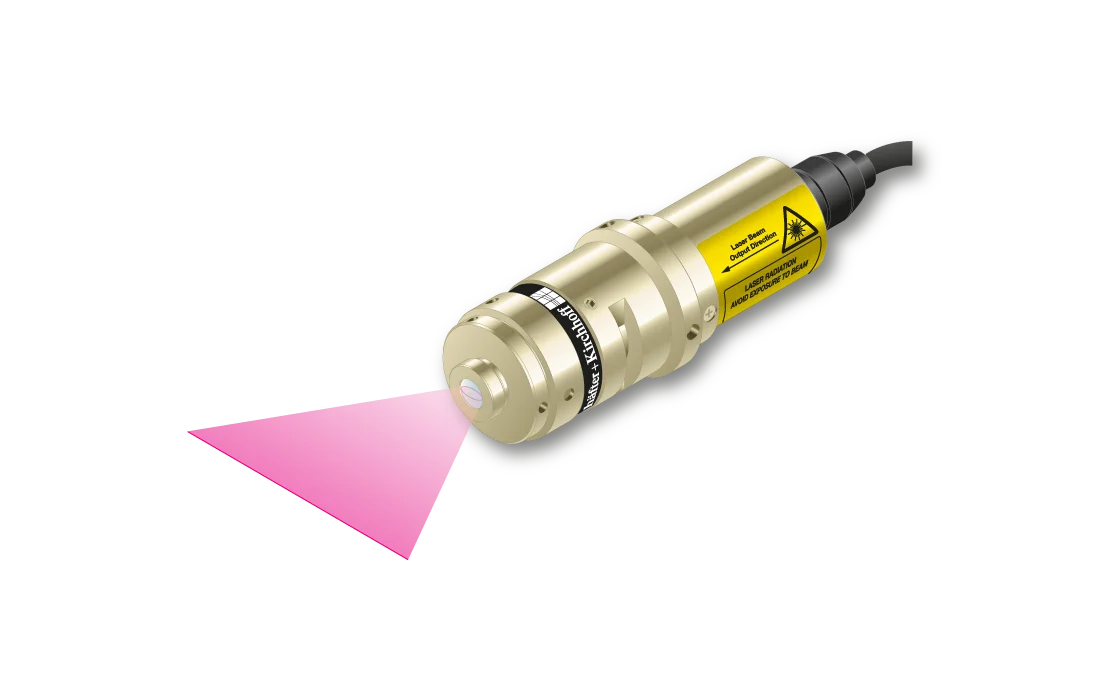

Micro Line Generator with a large fan angle
The laser diode beam source type 5LP80-S88+55CM-445-71-G02-A7.5-PS-7 has a fan angle of 84°.
The intensity profile is Gaussian in line direction clipped by an aperture with an edge intensity of 2 %. The line width is constant along the laser line. Across the laser line the intensity distribution is Gaussian.
The laser has integrated electronics type PS with micro-controller for control of the laser output power and serial interface (RS232). The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

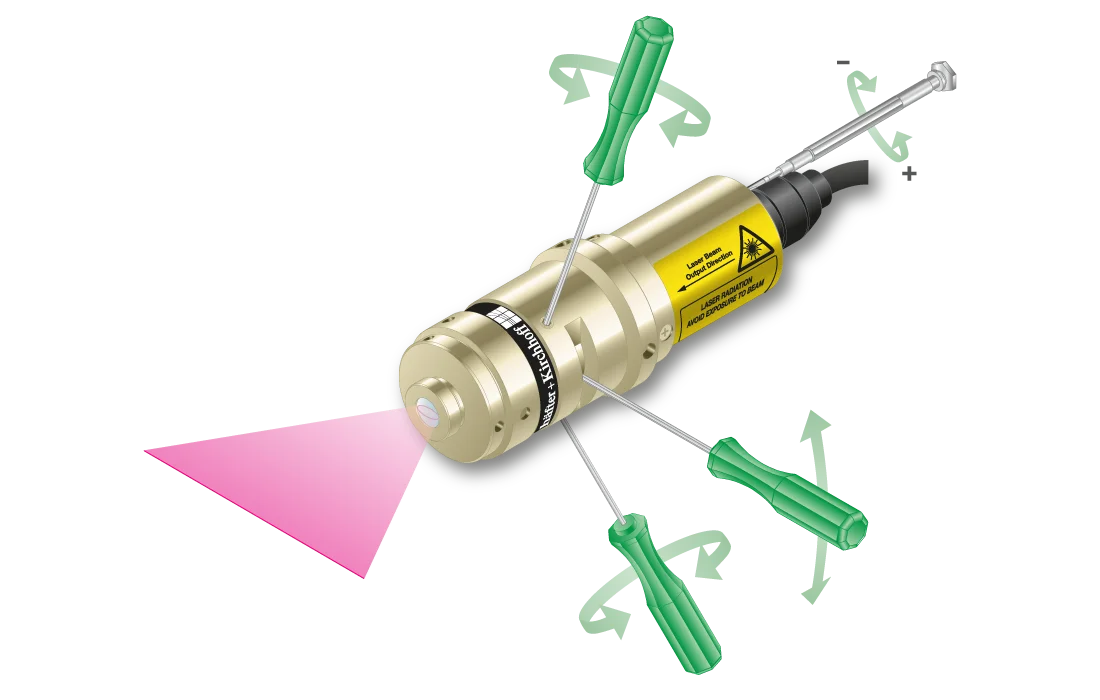

The working distance can be adjusted by adjusting the focus setting. Please note that beam parameters like line length and line width increase proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing.
