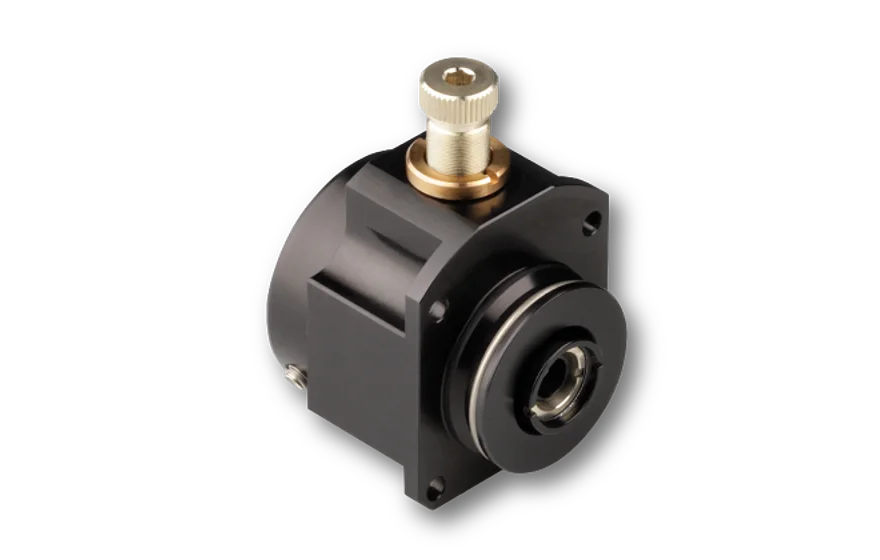

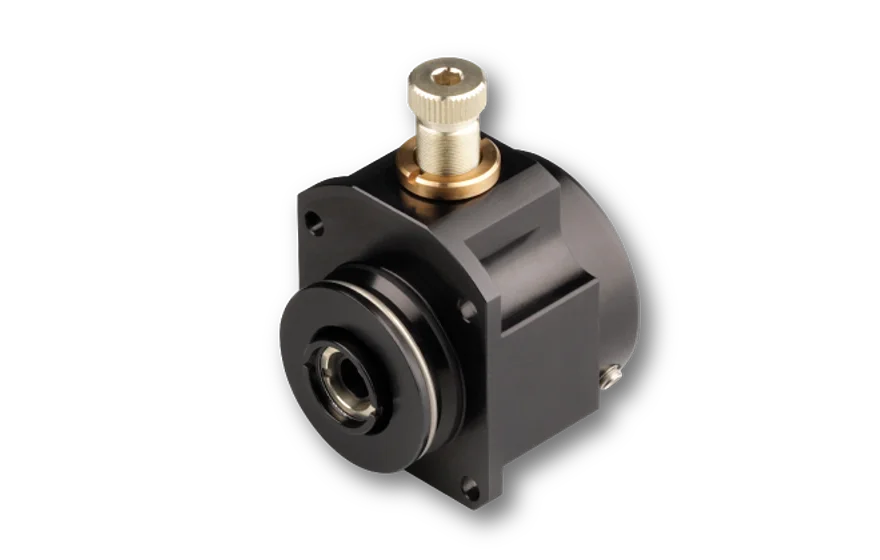

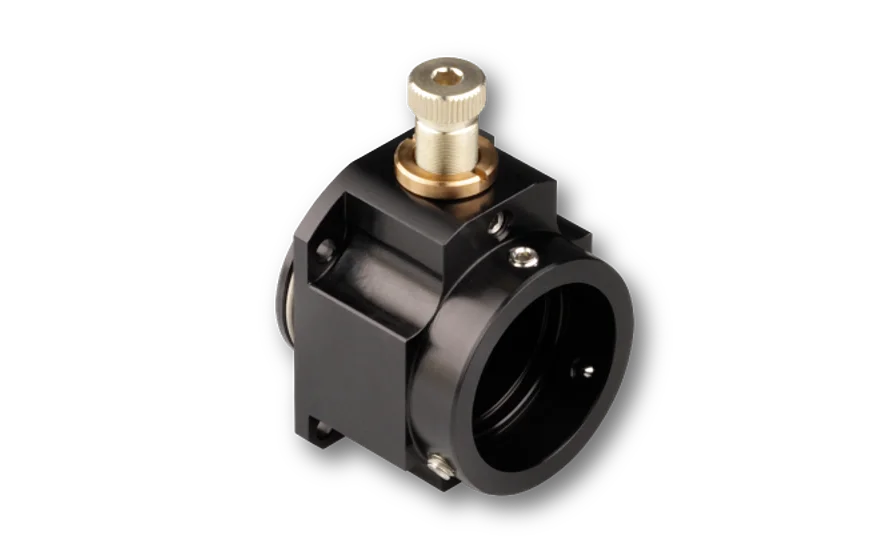

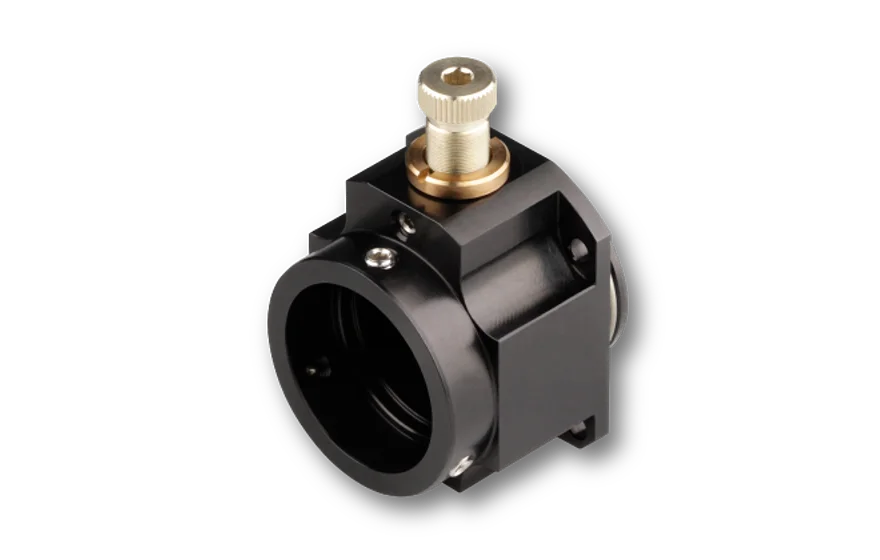

Polarizer 48PM-AT-19.5AC-C

Polarizing beam splitting cube with attenuator, in adjustment mount

48PM-AT
48PM-AT
48PM-AT
48PM-AT
48PM-AT
48PM-AT
48PM-AT
48PM-AT

Features

The polarization beam splitting cube 48PM-AT-19.5AC-C is used for polarization cleaning purposes in combination with PM fiber couplings. Only light with the correct polarization direction is transmitted.It has an integrated adjustable attenuator by means of an fine threaded screw.The polarization beam splitting has an adjustable mount. The 48PM-AT-19.5AC-C is designed to be integrated into the multicube system.
  • Polarizing beam splitting cube
  • Wavelength range 1100 - 1700 nm
  • Extinction ratio 10,000 : 1
  • Clear aperture 3.5 mm
  • Integrated attenuator
  • Broadband AR coating
  • In adjustable mount
  • System mount Ø 19.5 mm

Technical data

Polarizer 48PM-AT-19.5AC-C

Order code
48PM-AT-19.5AC-C
Type
Polarizing beam splitting cube
Wavelength range
1100 - 1700 nm
Extinction Ratio
10,000 : 1
AR Coating
1100 - 1700 nm
Clear aperture
3.5 mm
Rotation range
360°
Attenuator
Fine thread

0.25 mm pitch
Connection
Flange mount
System mount
Ø 19.5 mm
Housing material
black anodized aluminum
Weight
