FeaturesLaser line with a fan angle, approx. uniform intensity distributionand extended depth of focus.
- Line length: 26 mm
- Line width: 82 µm
- Wavelength: 685 nm
- Working distance: 111 mm
- Depth of focus: 21.2 mm
Laser Macro Line Generator with a fan angle

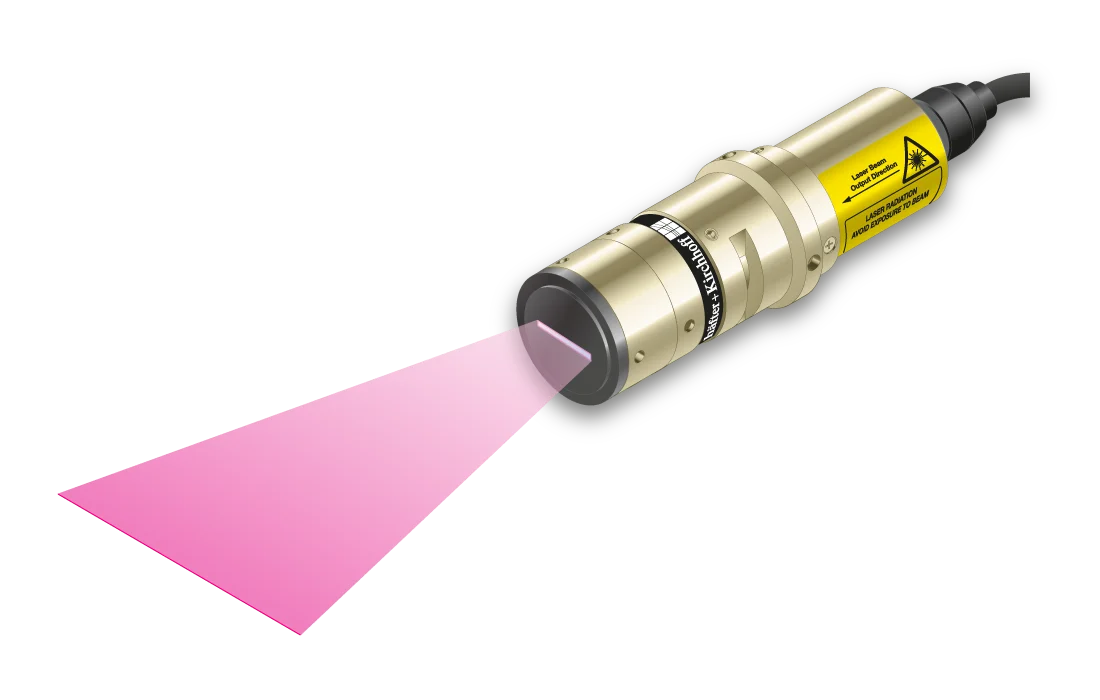

The laser diode beam source type 13LRM12-M125-1.5+55CM-685-24-H13-T12-CS-7 has a fan angle of 12° with a constant line width and approx. uniform intensity distribution along the laser line as well an extended depth of focus.
The fine-structure is a chain of equidistant dots with a spacing of approx. 1/2 the line width. The line width is constant along the laser line. Across the laser line the intensity distribution is approx. Gaussian.
The laser has integrated electronics type CS for control of the laser output power and serial interface (RS232). The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.
The working distance can be adjusted by adjusting the focus setting. Please note that beam parameters like line length and line width increase proportionally to the working distance.
A fine-adjustment of the distance between laser and target is recommended for fine-focusing.
