FeaturesLaser line with a fan angle and approx. uniform intensity distribution.
- Line length: 201 mm
- Line width: 129 µm
- Wavelength: 405 nm
- Working distance: 977 mm

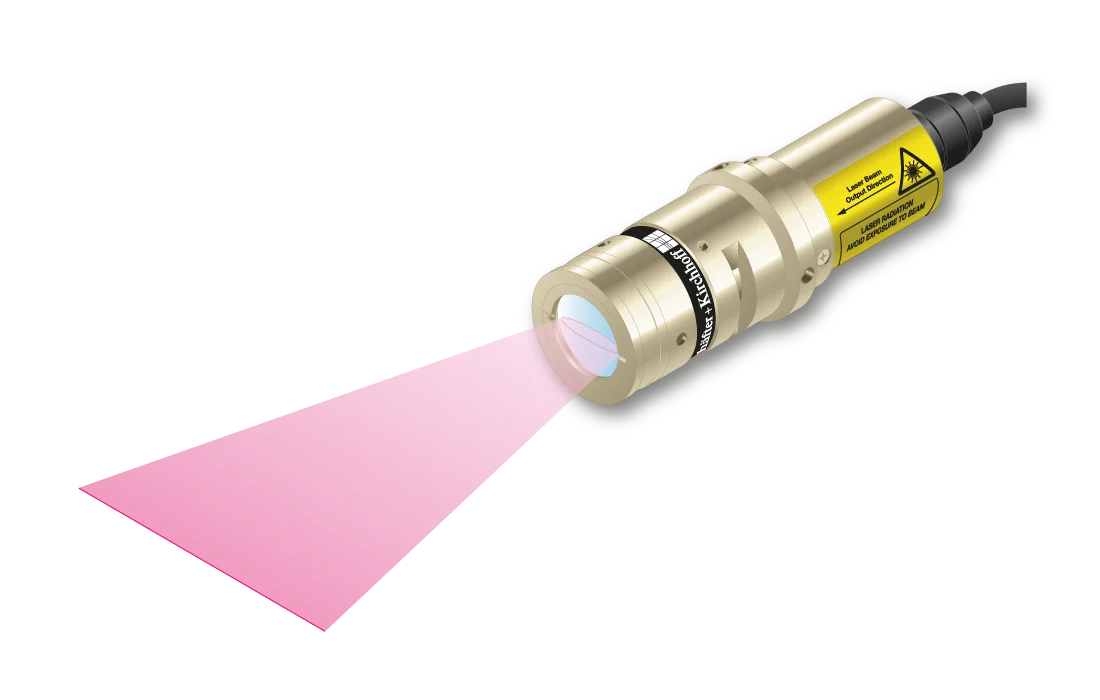

Laser Micro Line Generator with a fan angle
The laser diode beam source type 13LR12-S1000+55CM-405-85-X15-T15-PS-7 has a fan angle of 12° with a constant line width and approx. uniform intensity distribution along the laser line.
The fine-structure is a chain of equidistant dots with a spacing of approx. the line width. The line width is constant along the laser line. Across the laser line the intensity distribution is Gaussian.
The laser has integrated electronics type PS with micro-controller for control of the laser output power and serial interface (RS232). The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.
The working distance can be adjusted by adjusting the focus setting. Please note that beam parameters like line length and line width increase proportionally to the working distance.
A fine-adjustment of the distance between laser and target is recommended for fine-focusing.
