FeaturesLaser line with a fan angle, approx. uniform intensity distribution and very thin lines.
- Line length: 14 mm
- Line width: 17 µm
- Wavelength: 660 nm
- Working distance: 249 mm
Micro Line Generator with a fan angle

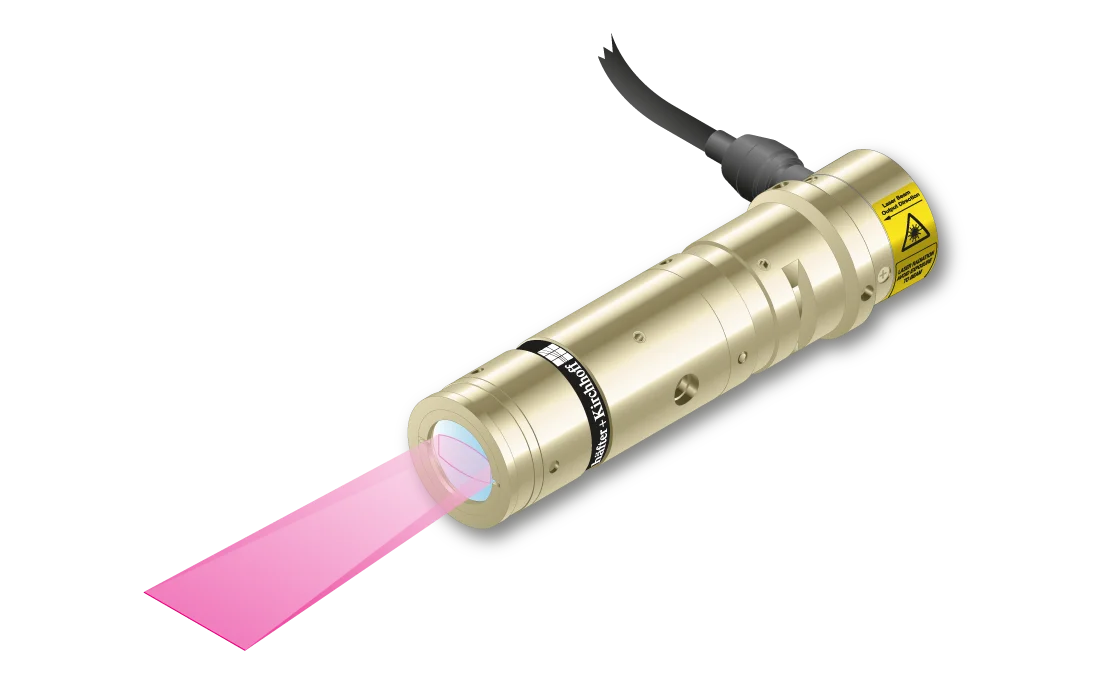

The laser diode beam source type 13LN250-S250+90CR-660-54-M25-M60-P-6 has a fan angle of 0° and approx. uniform intensity distribution along the laser line.
More precisely, it is Gaussian clipped by an aperture with an edge intensity of 64 %. Across the laser line the intensity distribution is Gaussian. The line width is constant along 60 % of the central are, outside this area the line width differs up to 30 %.

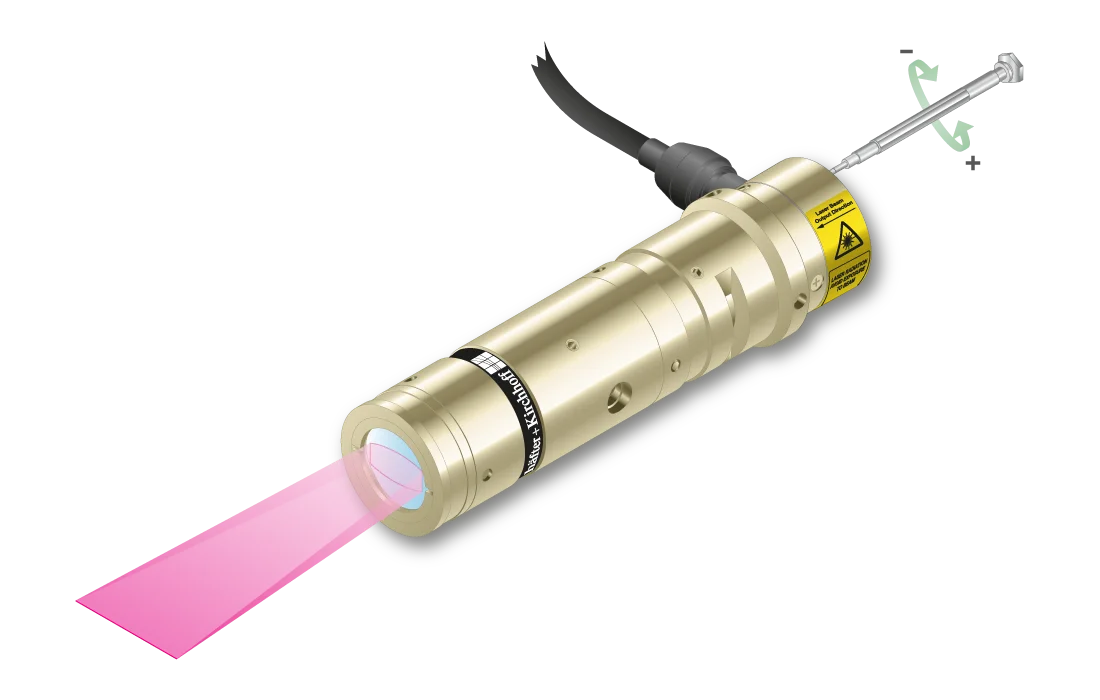

The laser has integrated electronics type P with micro-controller for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.
For this laser type the working distance is fixed. A fine-adjustment of the distance between laser and target is recommended for fine-focusing in order to achieve minimal line width.
